The Etcher's Paradise is a collection of DIY projects which include artwork for creating your own circuit boards. Each project contains a complete layout, schematic, drill guide, Bill of Materials, and shopping list in .pdf format. The zip files also contain the drill template and PCB artwork in Photoshop format for your convenience. These projects are offered for DIY use only! They are not meant to be used in any sort of commercial manufacturing, small or large. New projects will be added in monthly batches over the course of 2016. | ||||||
Important Note: These projects are generally unverified. Some are based on previously available projects at madbeanpedals and some are completely new and have never been built. Keep this in mind before you decide to build them; there is no garuantee that they will work. You can search the forum to find out if anyone has verified a particular project here. | ||||||
Project Name | Based On | Added | Size | Level | .zip | .sch |
Arsonist | TC Electronic Spark Booster (TM) | May 2017 | 125B | |||
Husky Boy | Paul Cochrane's Fat Bastard | Jan. 2016 | 1590B | |||
Narosla | Xotic EP Booster (TM) | Feb. 2016 | 1590B | |||
Spackler | Demeter Fat Control (TM) | Jan. 2016 | 1590B | |||

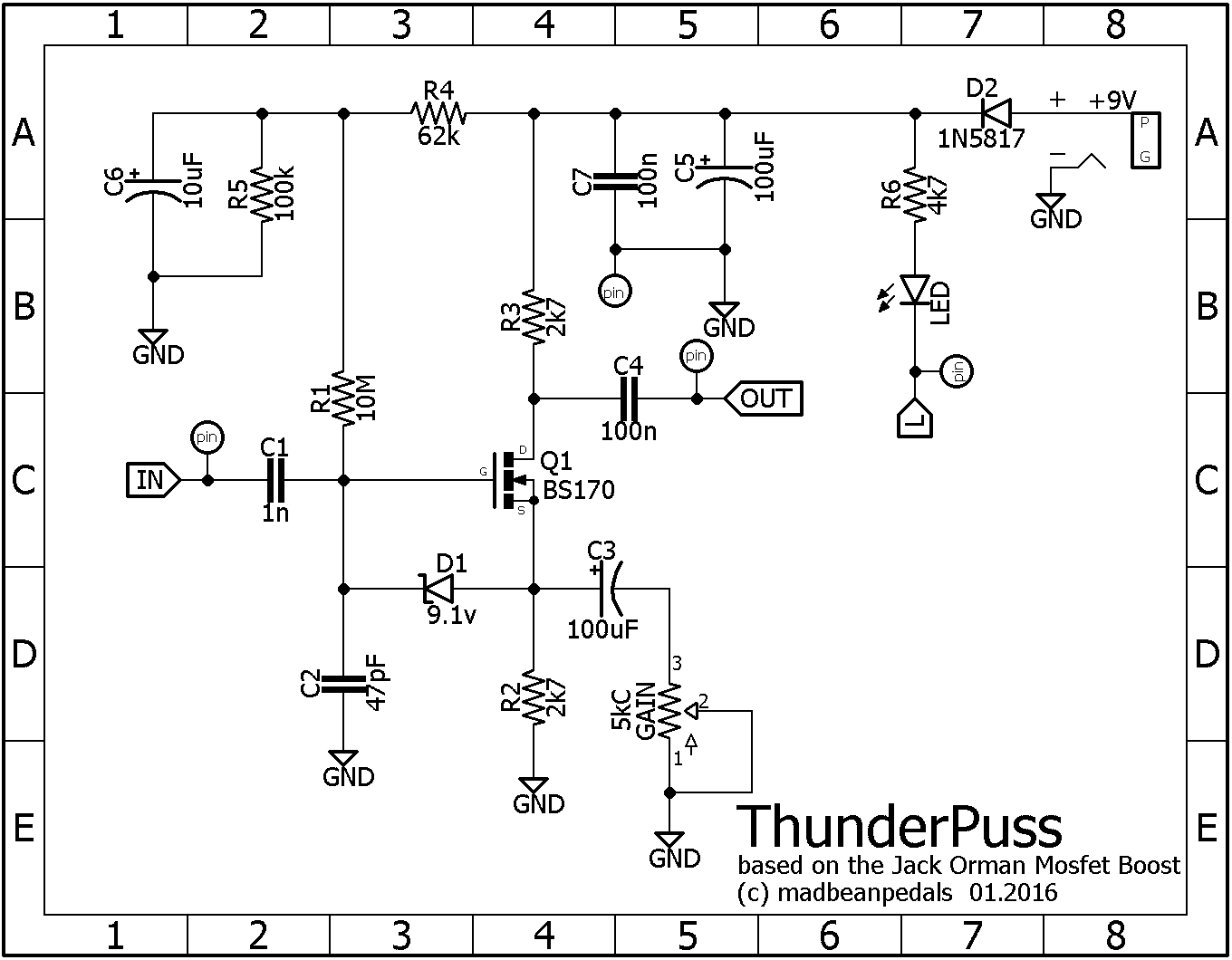

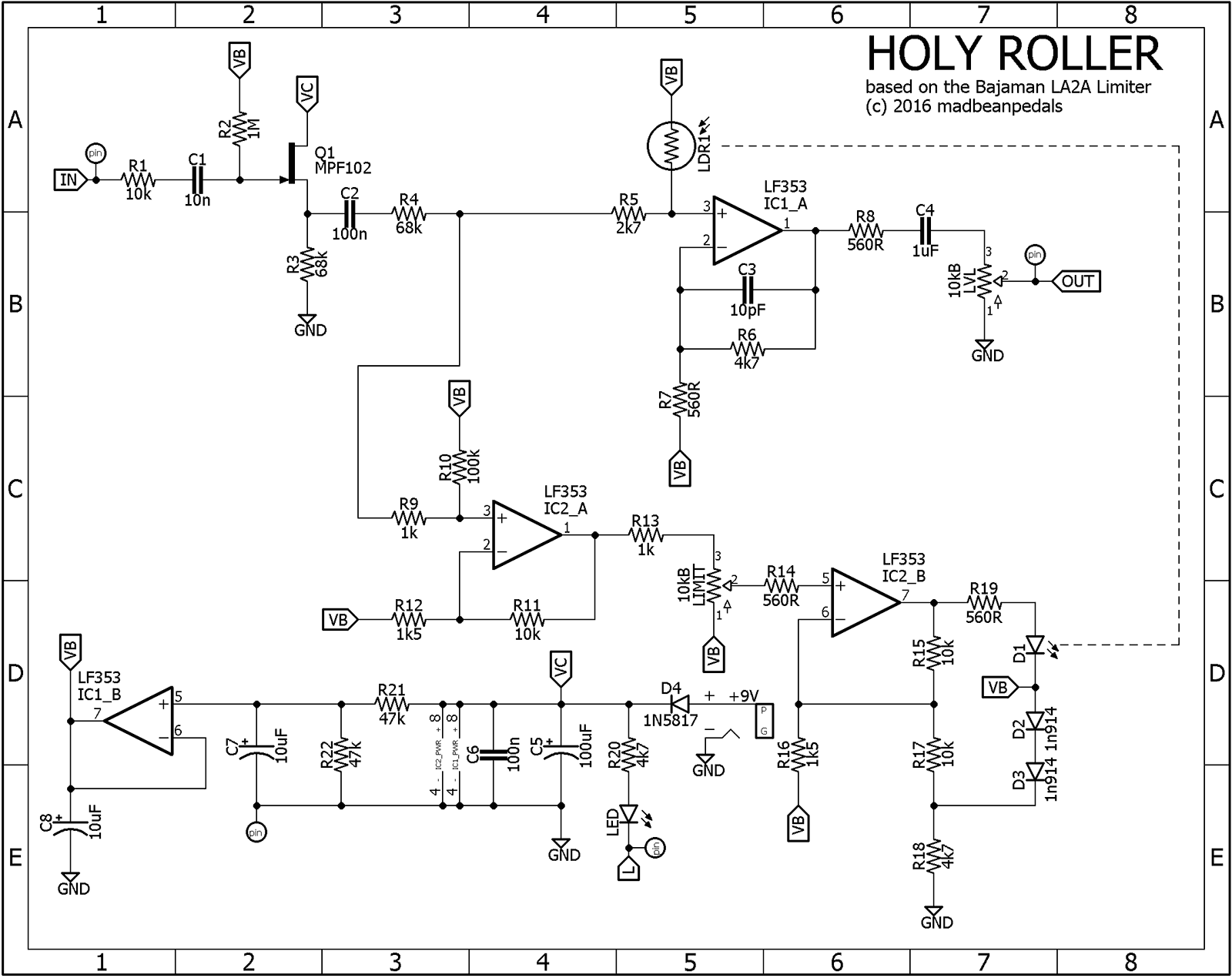

Thunderpuss | Jack Orman Mosfet Boost | Jan. 2016 | 1590A | |||
Project Name | Based On | Added | Size | Level | .zip | .sch |
B.F.C. | Keeley Compressor (TM) | Jan. 2016 | 1590B | |||
Holy Roller | Bajaman LA2A Limiter | Feb. 2016 | 1590B | |||
Skinflint | mictester Really Cheap Compressor | May 2017 | 1590A | |||

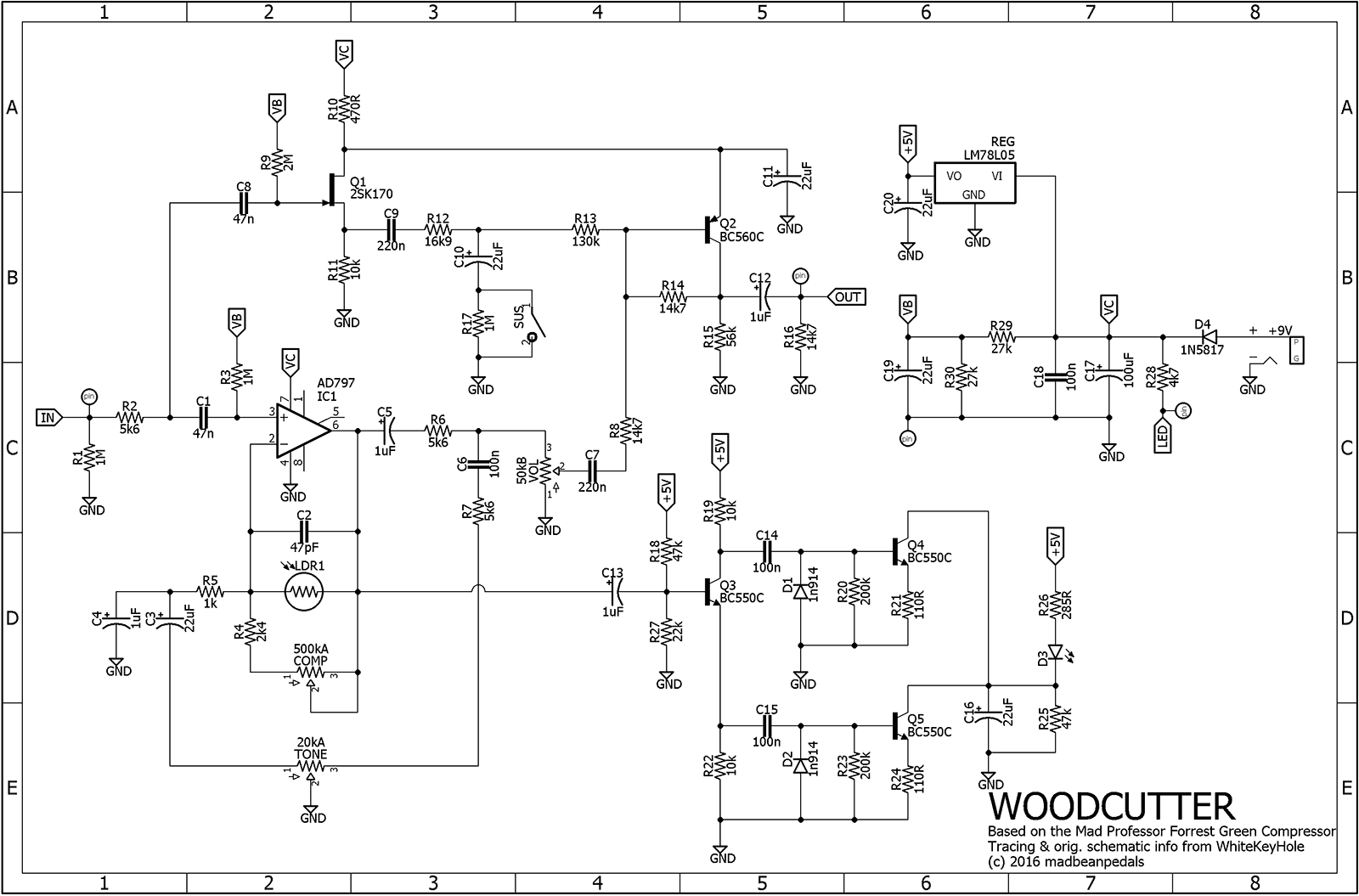

Woodcutter | Mad Professor Forrest Green Compressor (TM) | Jan. 2016 | 1590B | |||
Project Name | Based On | Added | Size | Level | .zip | .sch |

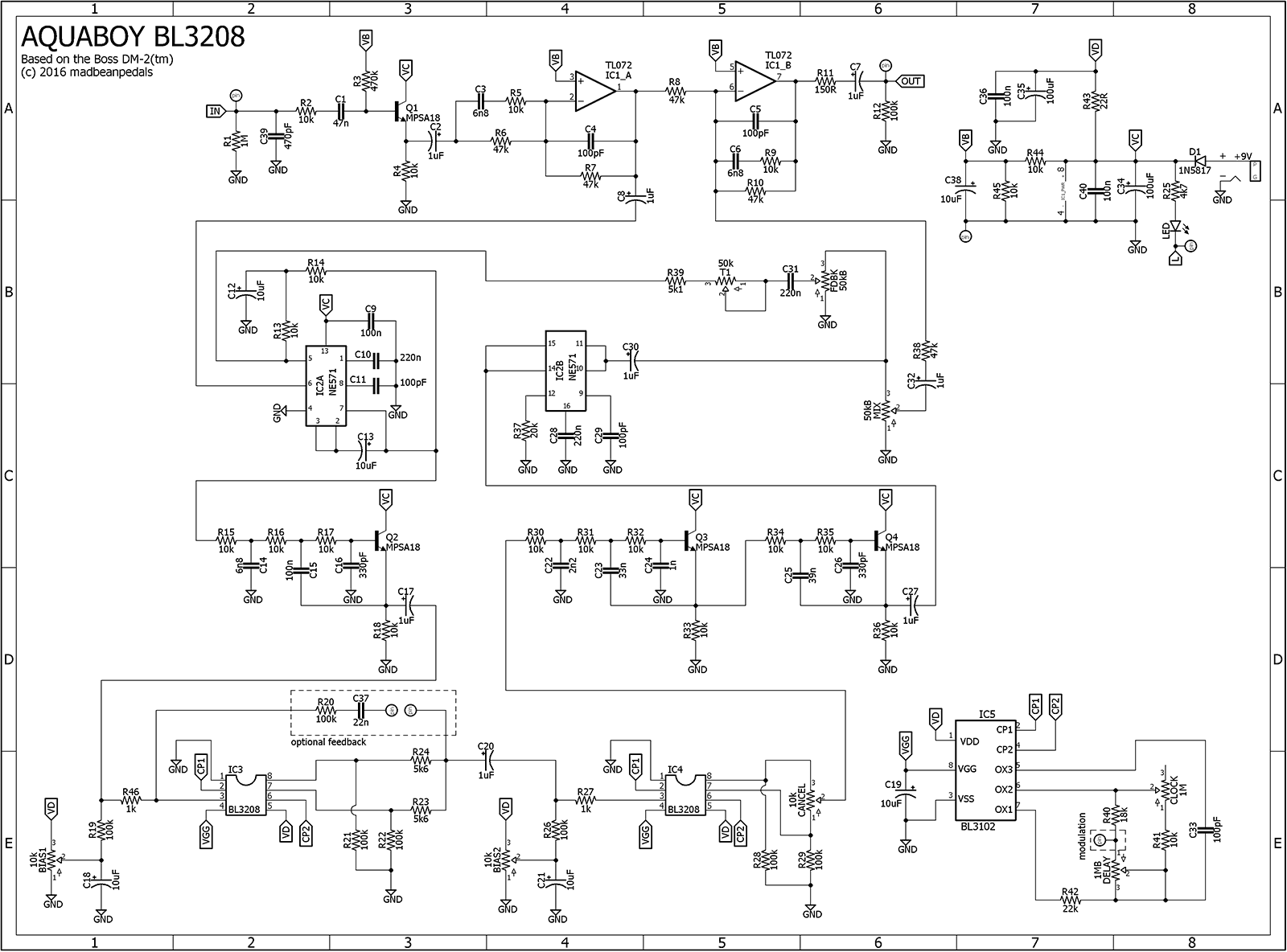

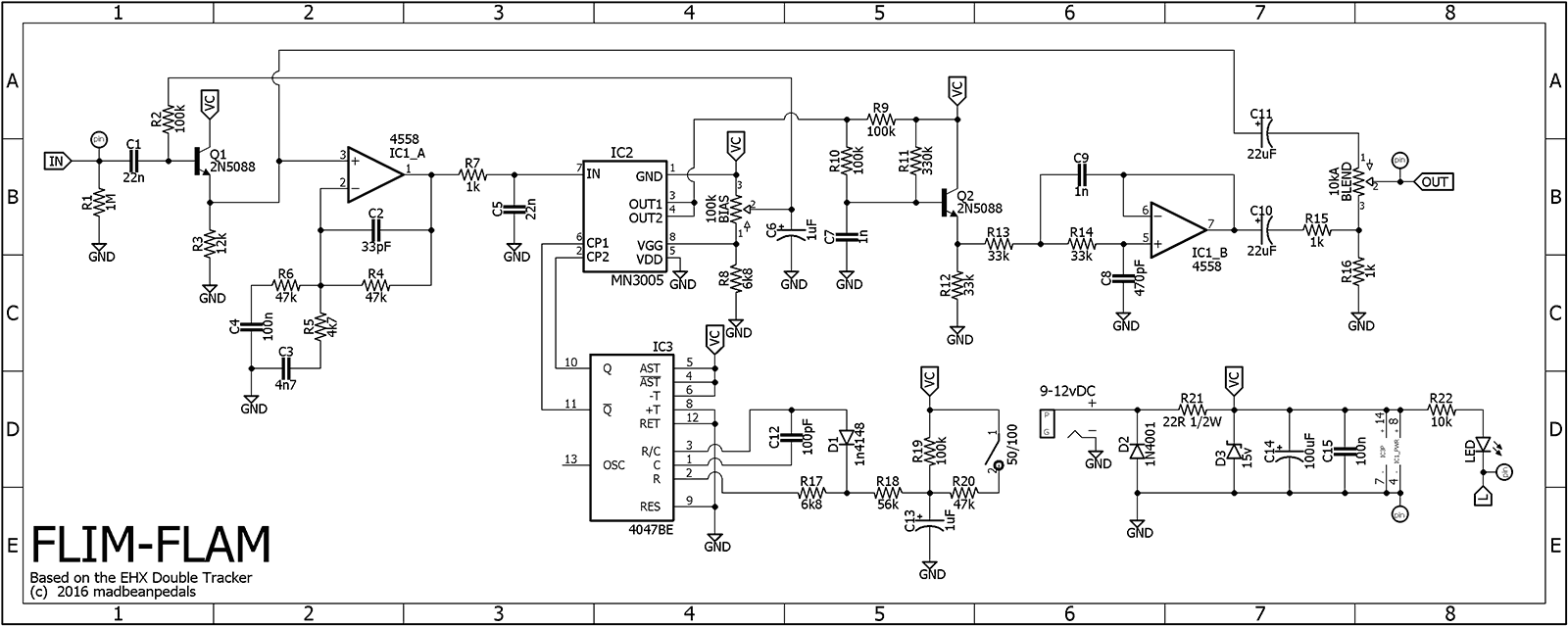

Aquaboy-BL | Boss DM-2 (TM) (BL3208 implementation) | Jan. 2016 | 1590BB | |||
Cave Dweller 2 | Simple PT2399 delay | Nov. 2019 | 1590B | |||
Cave Dweller 2022 | PT2399 delay w/modulation | Mar. 2022 | 1590B | |||
Flim Flam | EHX Double Tracker (TM) | Dec. 2016 | 1590B | |||
Leviathan | Wampler Faux Echo (TM) | Jan. 2016 | 1590BB | |||
Maglev | Keeley Magnetic Echo (TM) (w/mods) | Feb. 2022 | 1590BB | |||

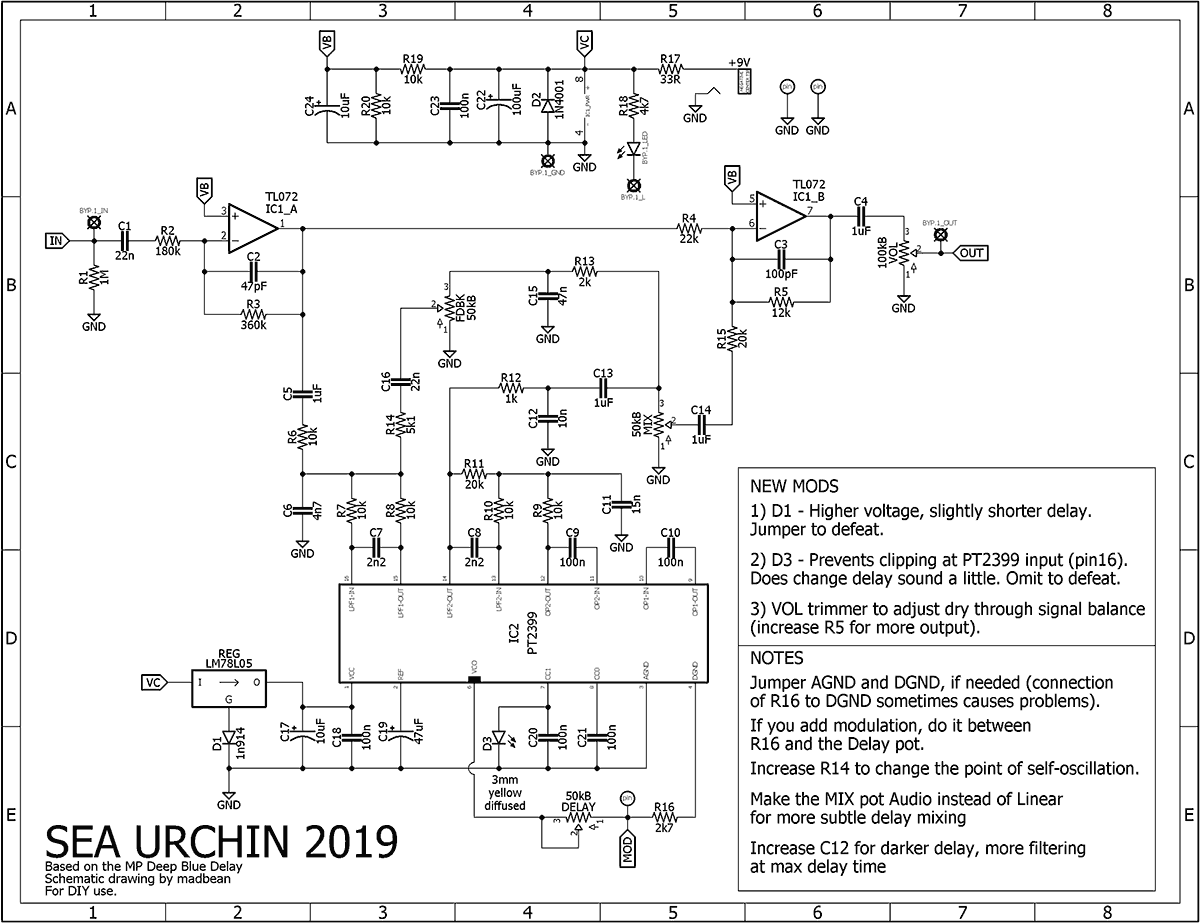

Sea Urchin | MP Deep Blue Delay (TM) (w/mods) | Sept. 2019 | 125B | |||
Total Recall | EHX DMM (TM) | May 2017 | 1790NS | |||
Project Name | Based On | Added | Size | Level | .zip | .sch |

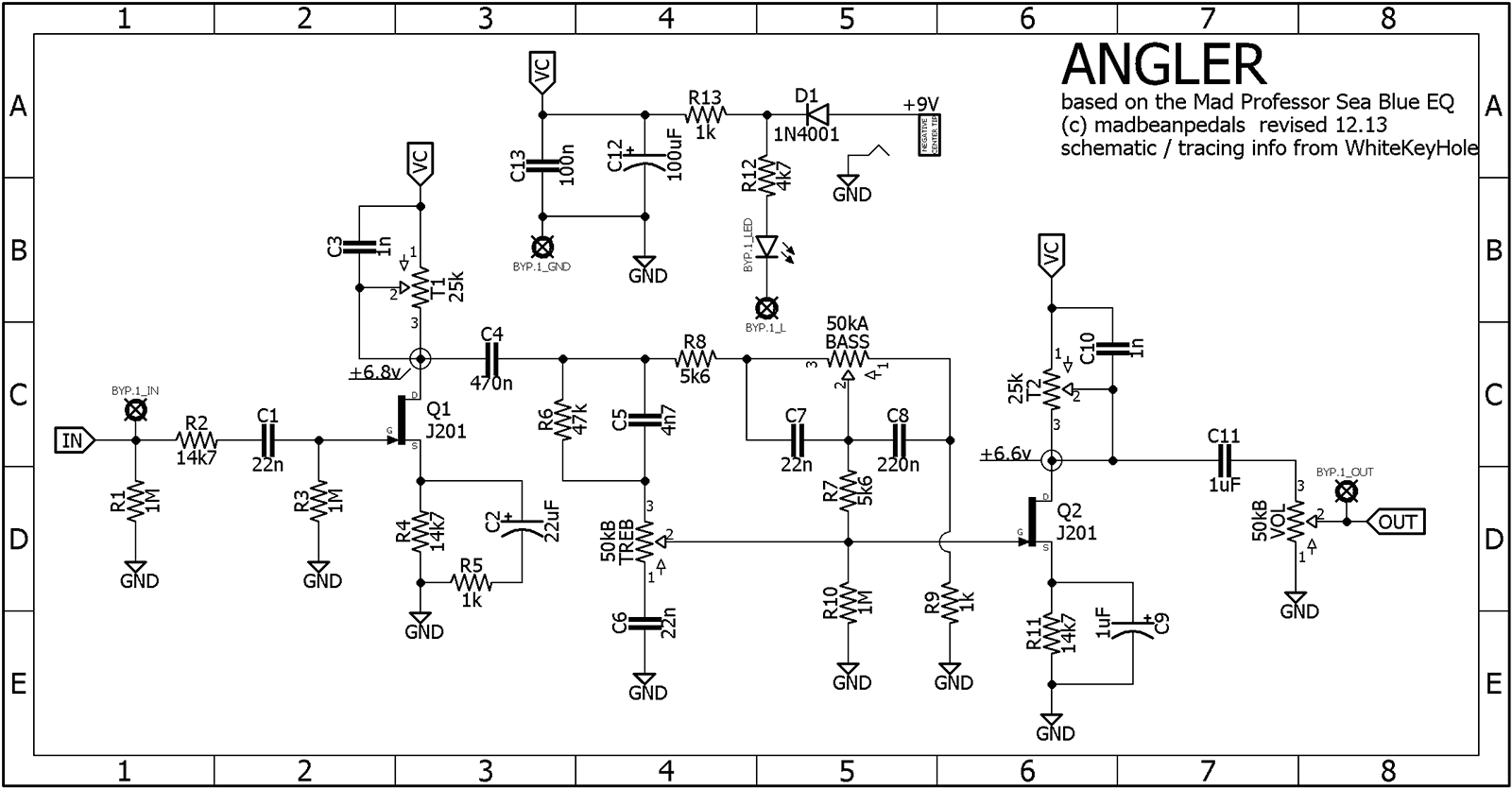

Angler | MP Sea Blue EQ(TM) | May 2017 | 1590B | |||

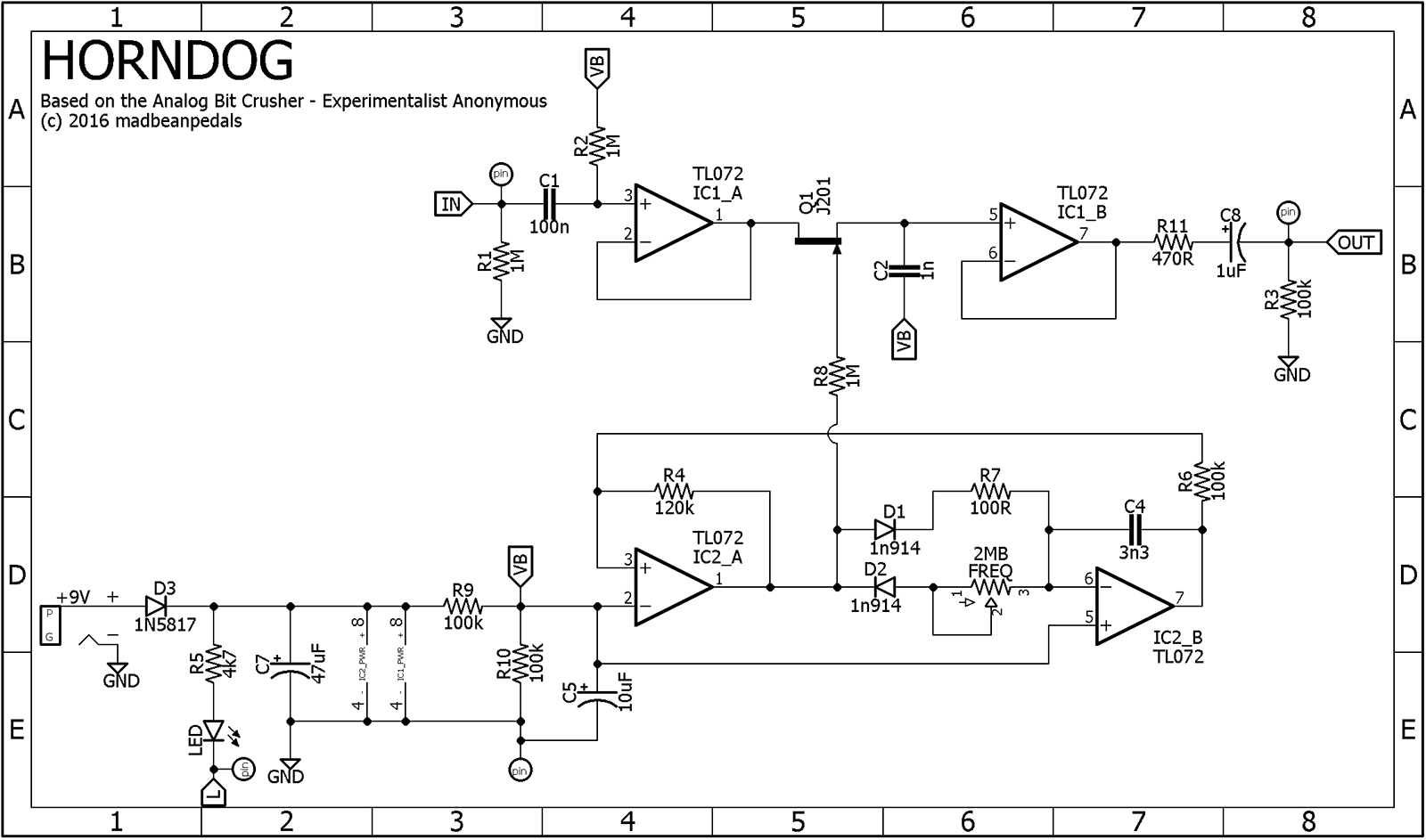

HornDog | Experimentalist Anonymous Analog Bit Crusher | Jan. 2016 | 1590A | |||
Slurpee | EHX Bass Balls (TM) | Jan. 2016 | 125B | |||
Project Name | Based On | Added | Size | Level | .zip | .sch |

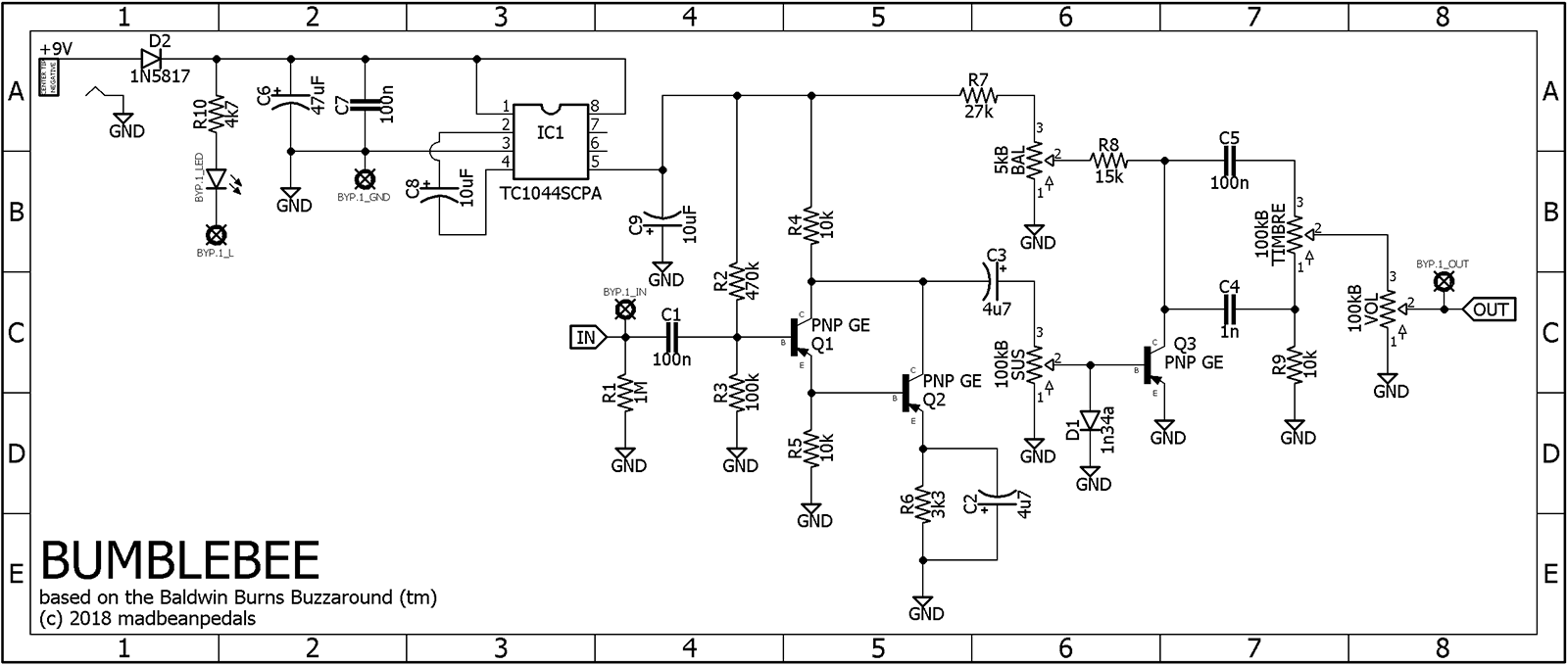

Bumblebee | Baldwin-Burns Buzzaround (TM) | Dec. 2018 | 1590B | |||

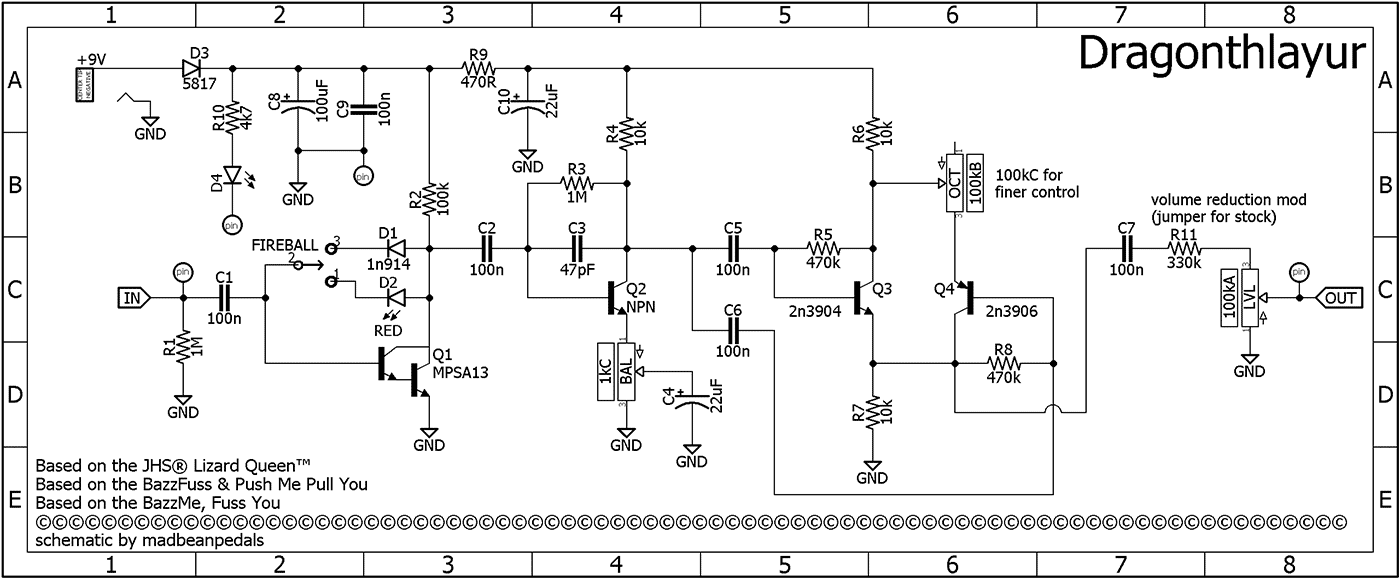

Dragonthlayur | EHX® Lizard Queen™ - NEW! | April 2023 | 1590B | |||
Cosmopolitan | Skreddy Screwdriver (TM) | Feb. 2016 | 1590B | |||
Gastronomy | EQD Bellows (TM) | May 2017 | 1590A | |||

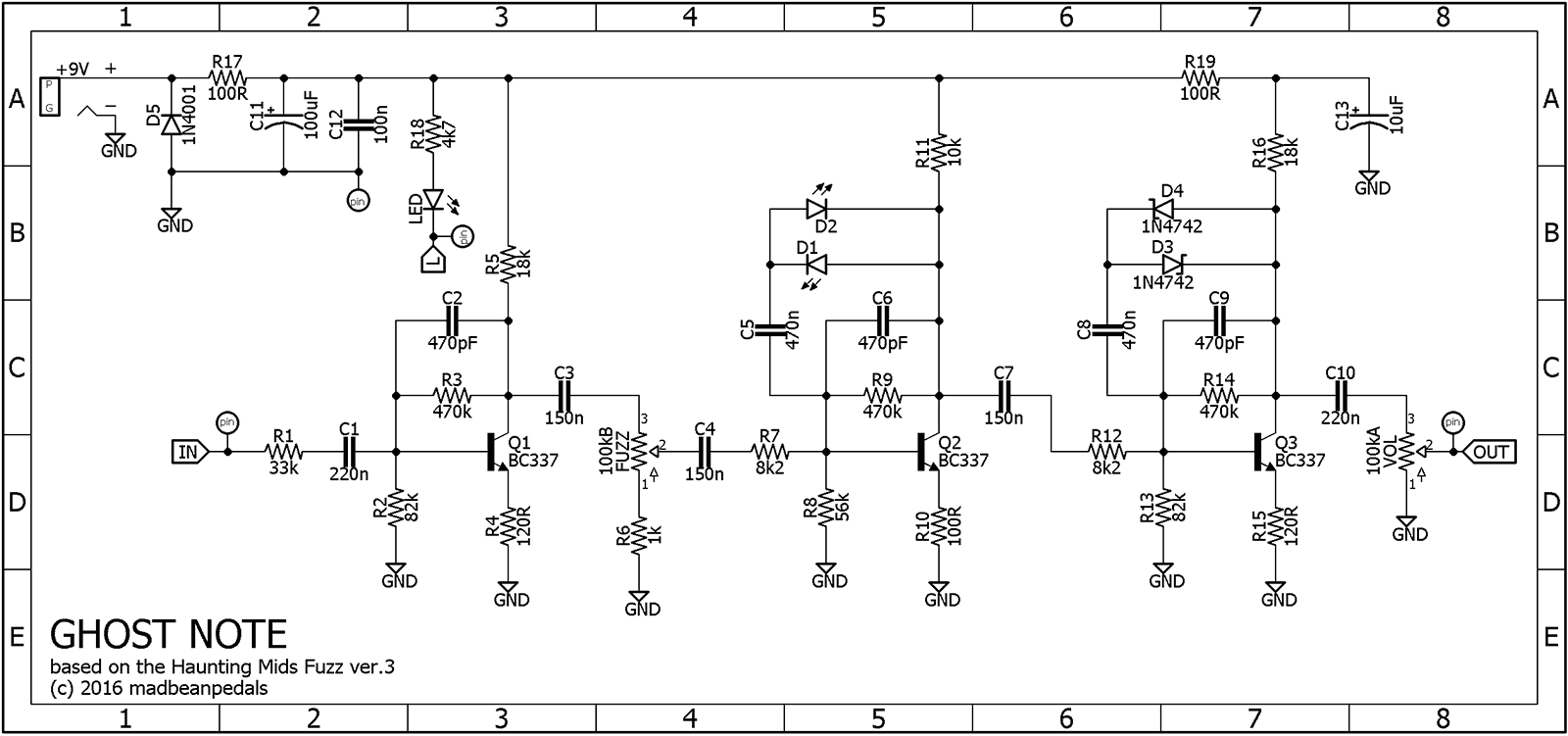

Ghost Note | Haunting Mids Fuzz (ver.3) (TM) | Jan. 2016 | 1590B | |||

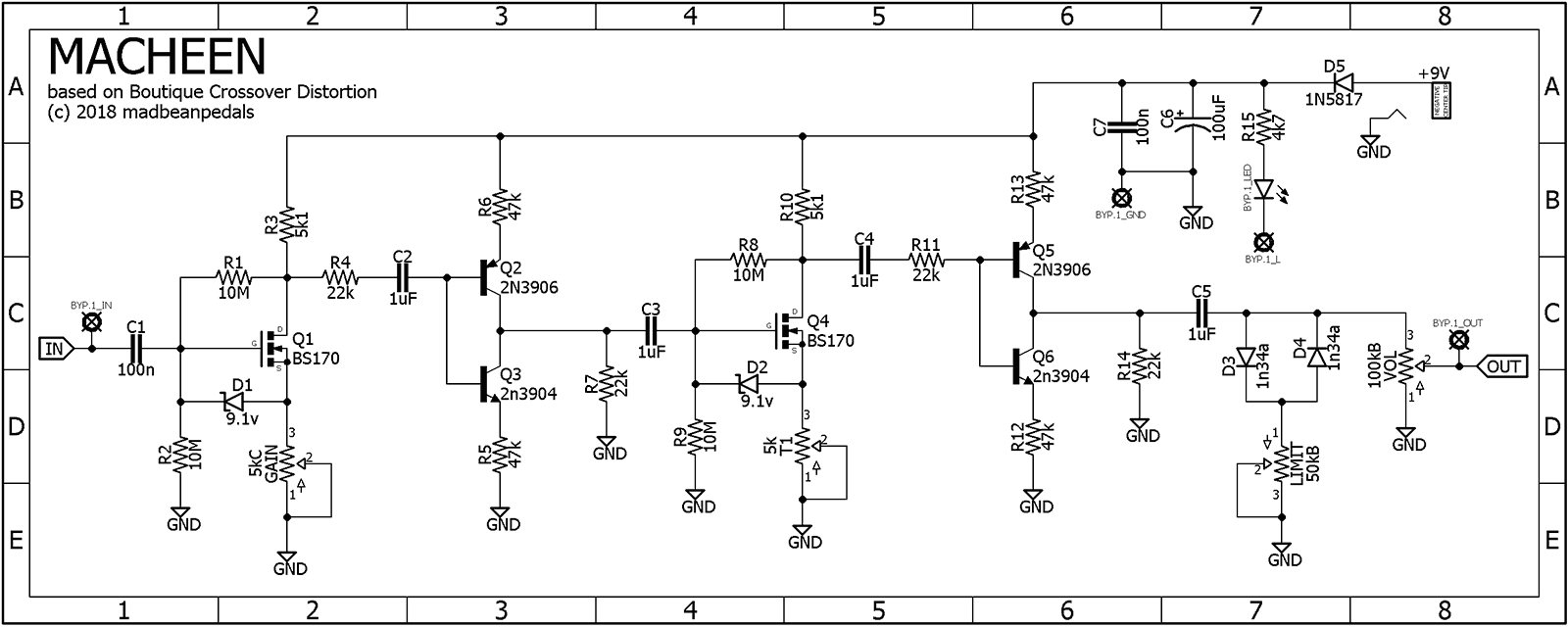

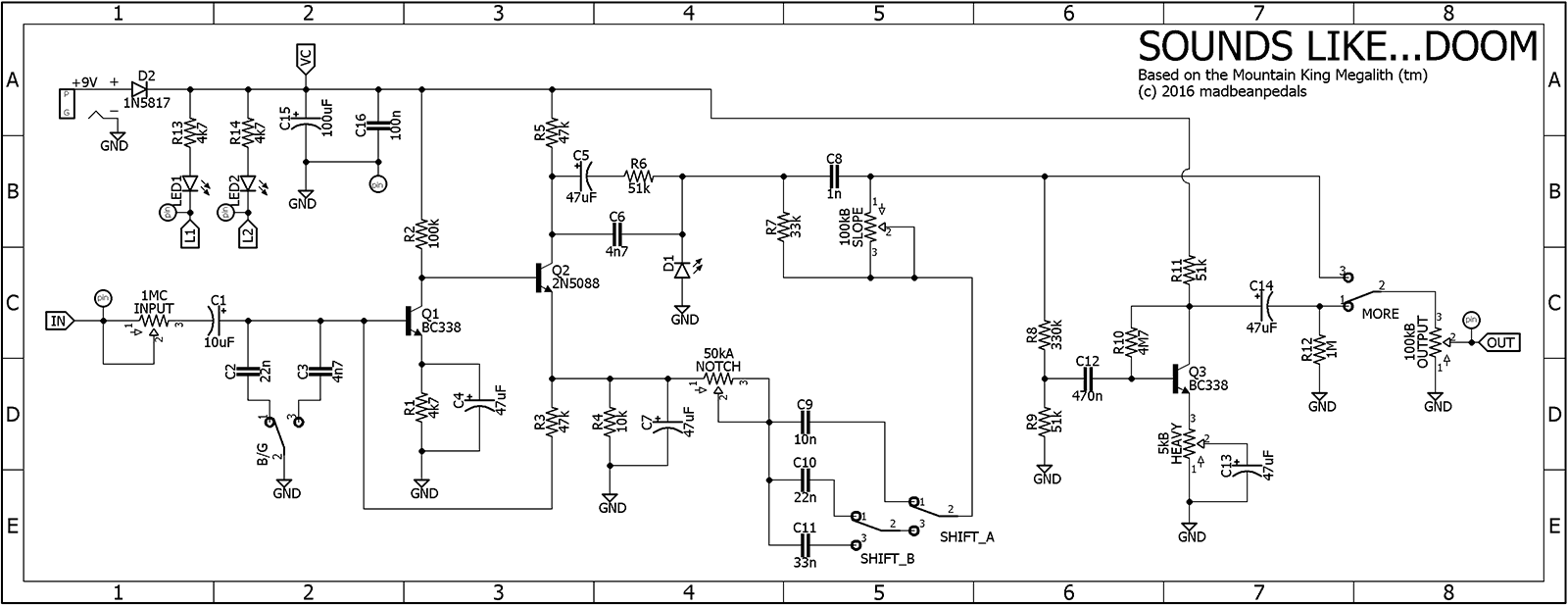

Macheen | Crossover Distortion (TM) | Dec. 2018 | 1590B | |||
PyleDriver | MI Audio GI Fuzz (TM) | Dec. 2018 | 125B | |||
Sounds Like...Doom | Mountain King Megalith (TM) | Jan. 2016 | 1590BB | |||
StrangerDanger | EHX Double Muff (TM) | Dec. 2018 | 1590B | |||

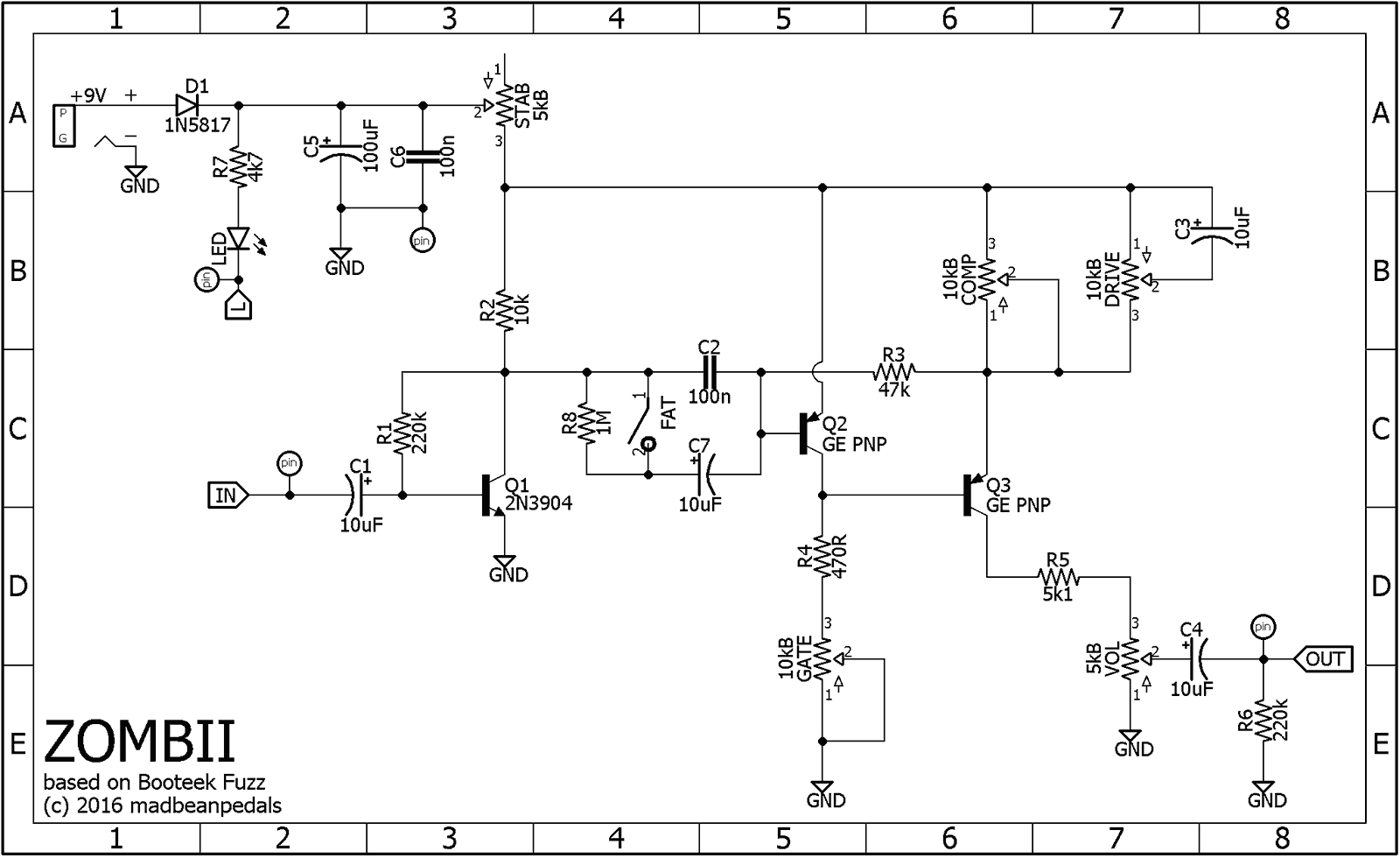

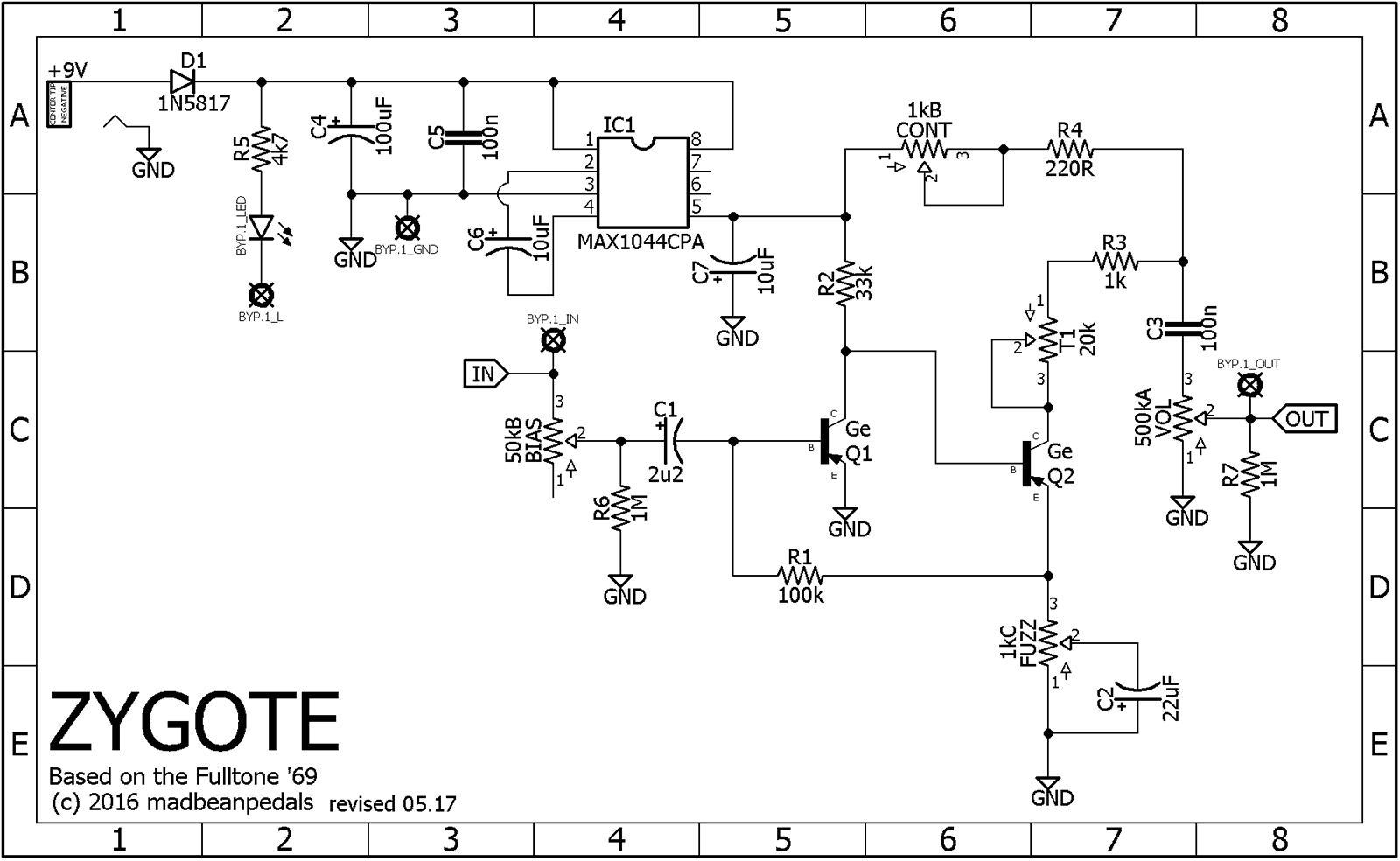

Zombii | Booteek Fuzz | Feb. 2016 | 1590B | |||
Zygote | Fulltone '69 (TM) | May 2017 | 1590B | |||
Project Name | Based On | Added | Size | Level | .zip | .sch |
BandWrecker | John Hollis Crash Sync | Jan. 2016 | 1590B | |||
Double Flush | Bajaman Trembulator | Mar. 2016 | 1590B | |||
Gravity Wave | EQD Sea Machine (TM) | Jan. 2016 | 1590BB | |||
Touchstone | EHX Small Clone (TM) | May 2017 | 125B | |||
Project Name | Based On | Added | Size | Level | .zip | .sch |
Octavomit | Joe Davisson Shocktave | Jan. 2016 | 1590B | |||
Pipsqweek | Dan Armstrong Green Ringer | Feb.. 2016 | 1590A | |||
Poindexter | "Boutique" Octave | Jan. 2016 | 1590B | |||

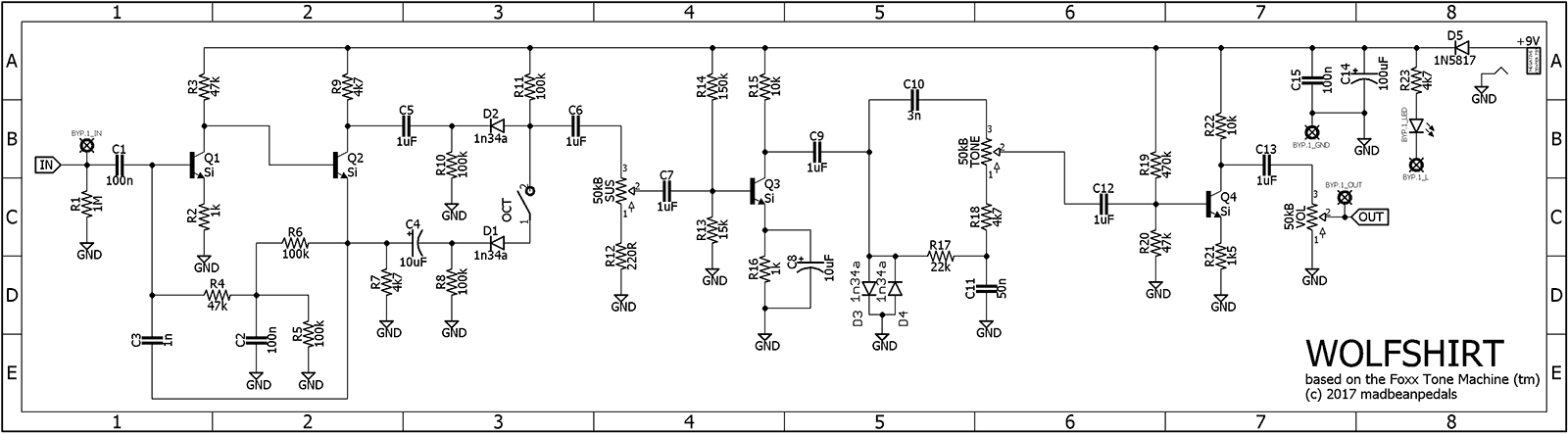

Wolfshirt | Foxx Tone Machine(TM) | May 2017 | 1590B | |||
Project Name | Based On | Added | Size | Level | .zip | .sch |
Coda-BYP | Coda Effects Soft Bypass | May 2017 | 1590B and up | |||
Cornholio | Cornish Bypass Buffer | Jan. 2016 | 1590A | |||

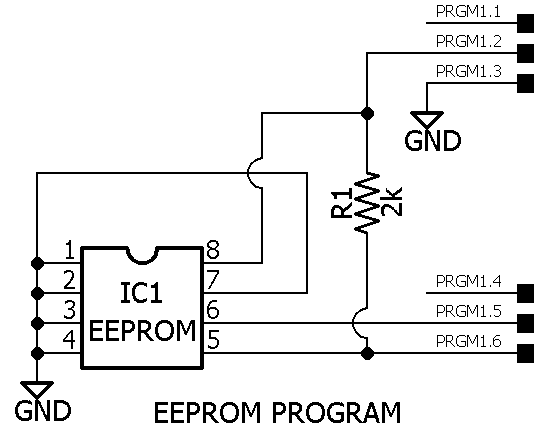

EEPROM | 24LC32a programmer | Oc.t 2018 | n/a | |||

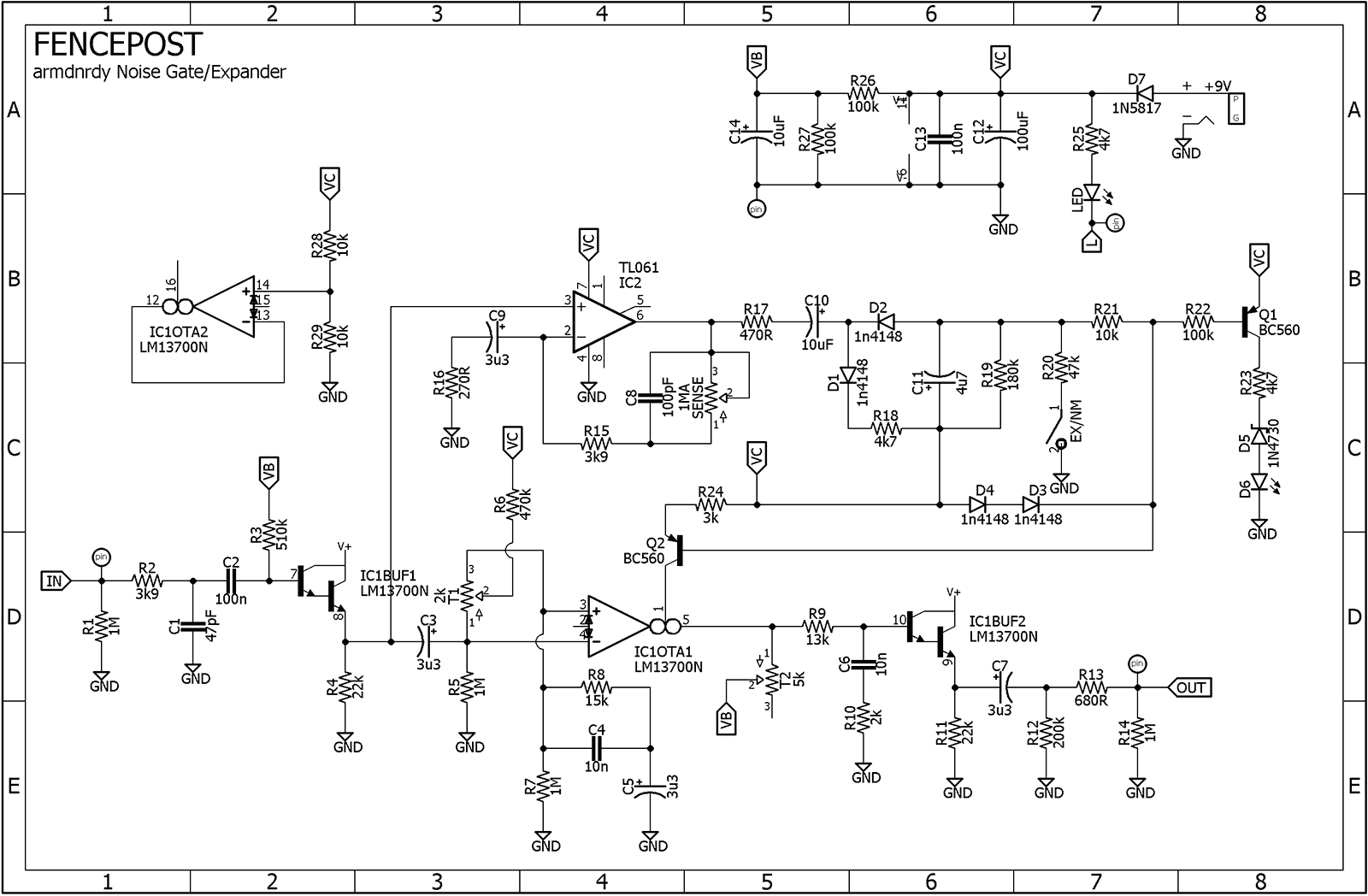

Fencepost | armdnrdy Noise Gate / Expander | Jan. 2016 | 1590B | |||

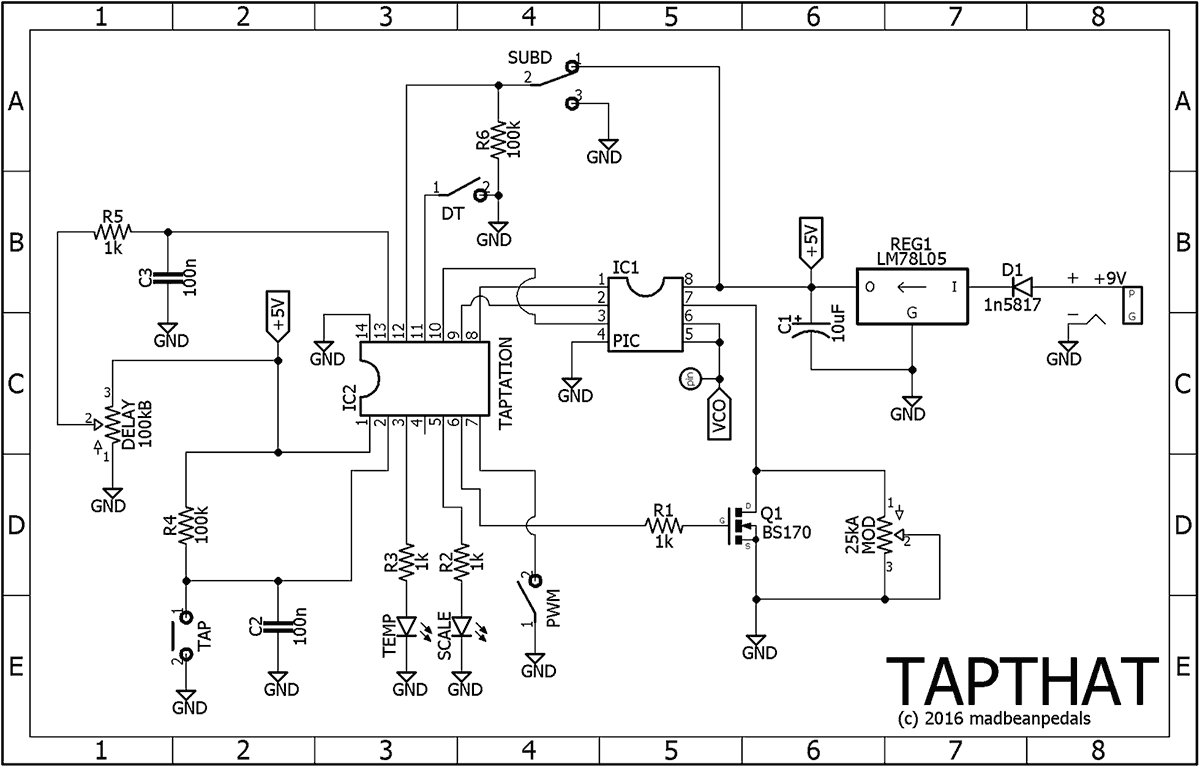

Tapthat | Taptation Utility | Jan. 2016 | 1590G/B/BB | |||
Project Name | Based On | Added | Size | Level | .zip | .sch |

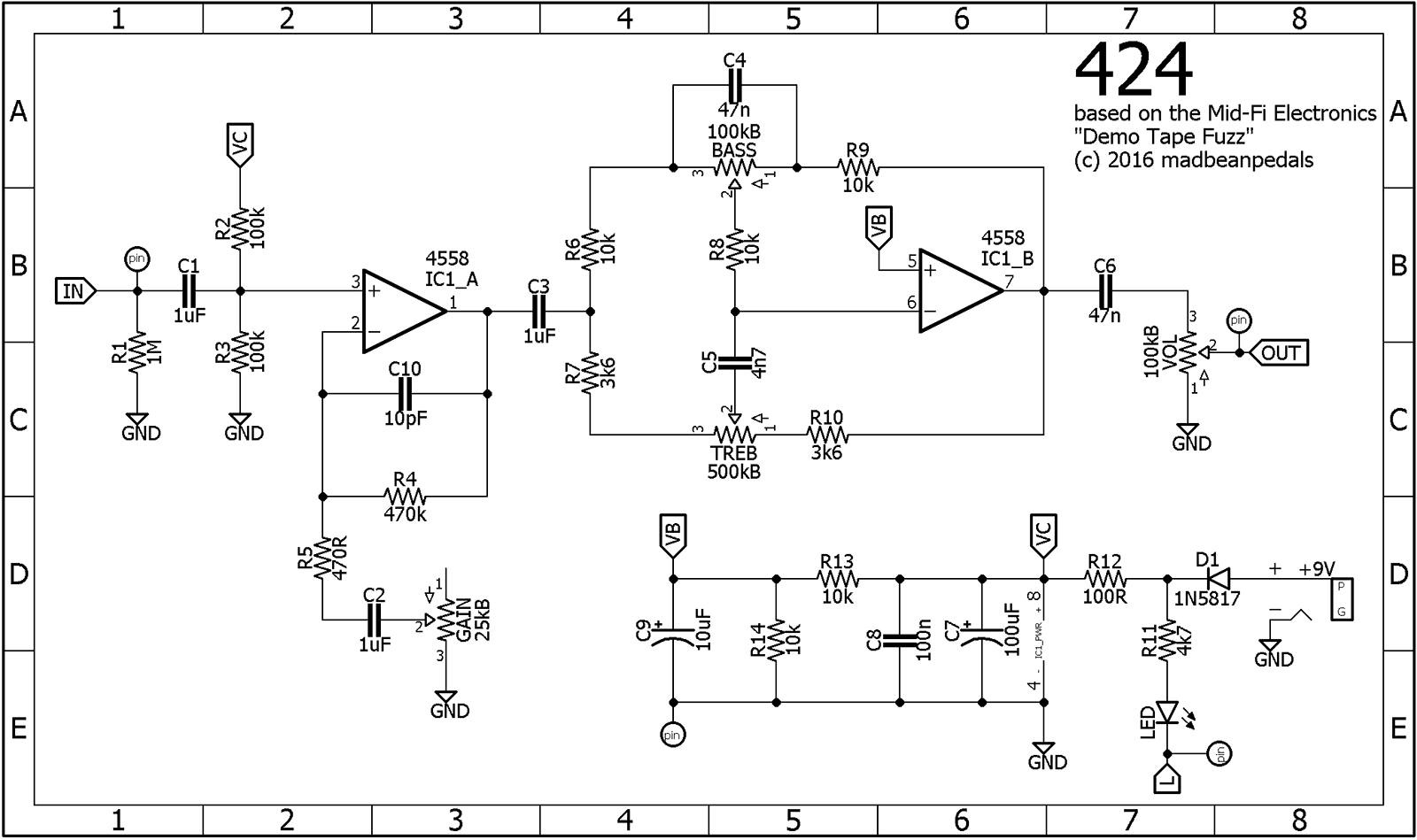

424 | Mid-Fi Electronics Demo Tape Fuzz (TM) | Jan. 2016 | 1590B | |||
Ankh | Catalinbread Rah (TM) | Jan. 2016 | 125B | |||

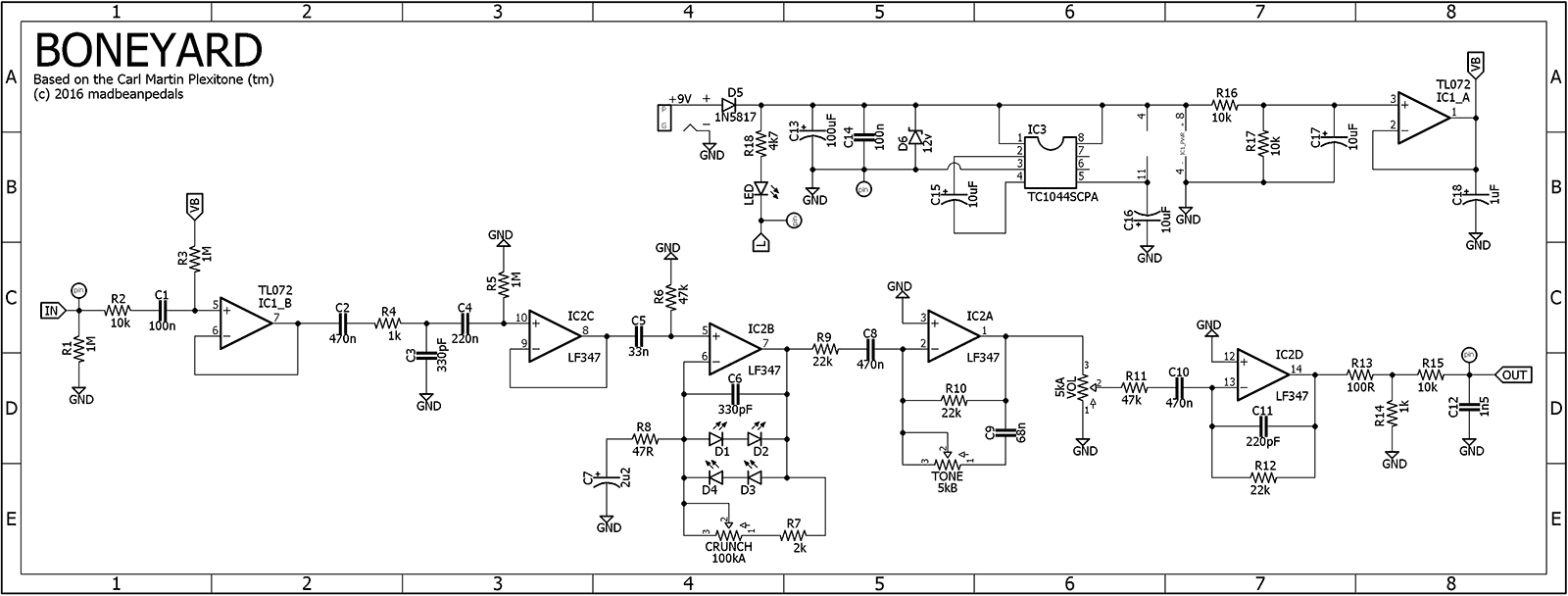

Boneyard | Carl Martin Plexitone(TM) | Feb. 2016 | 1590B | |||
Breen Machine | Barber Compact Direct Drive (TM) | May 2017 | 1590B | |||
Chaod | A simple, smooth OD - NEW! | Feb 2022 | 1590B | |||

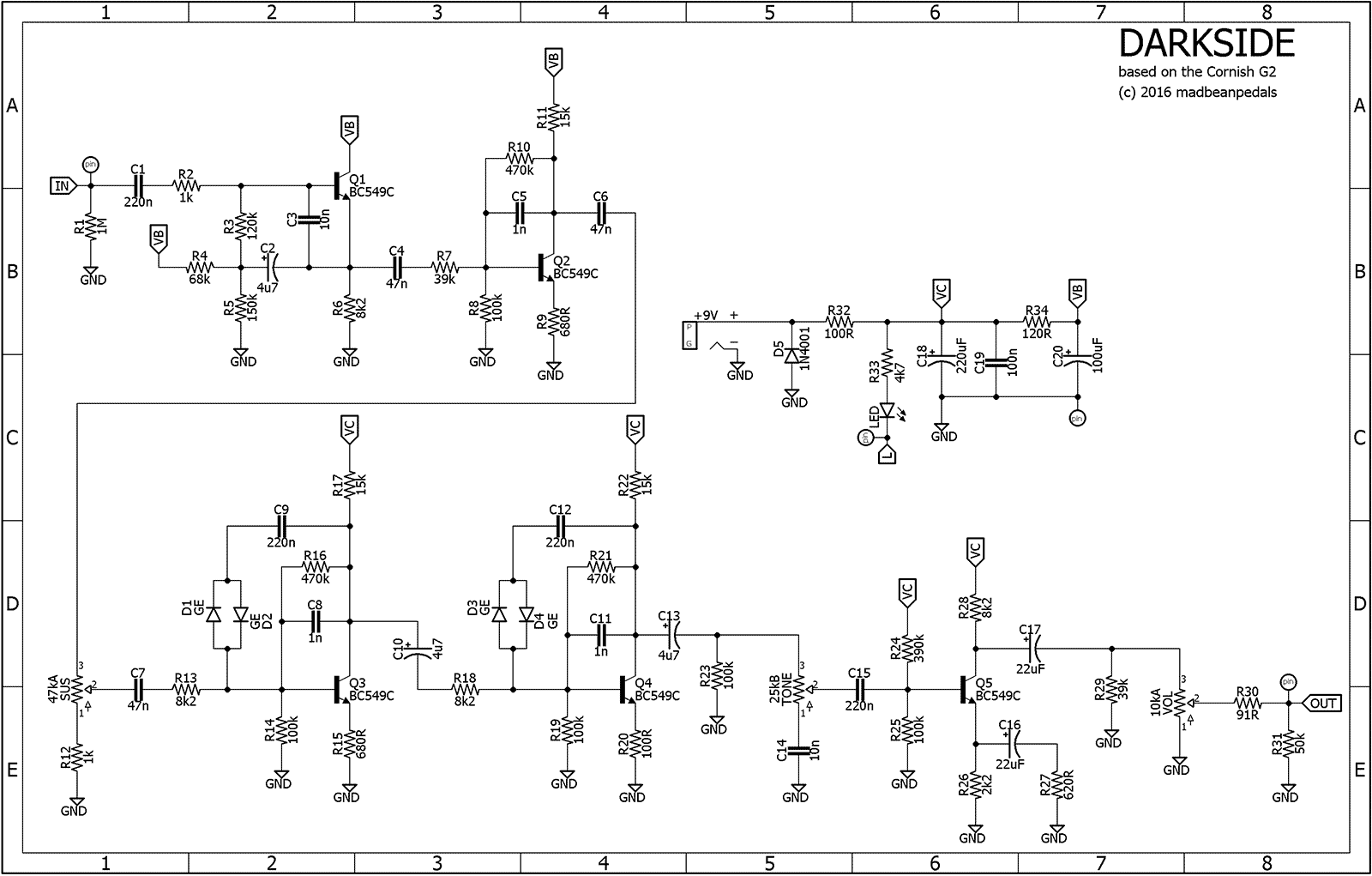

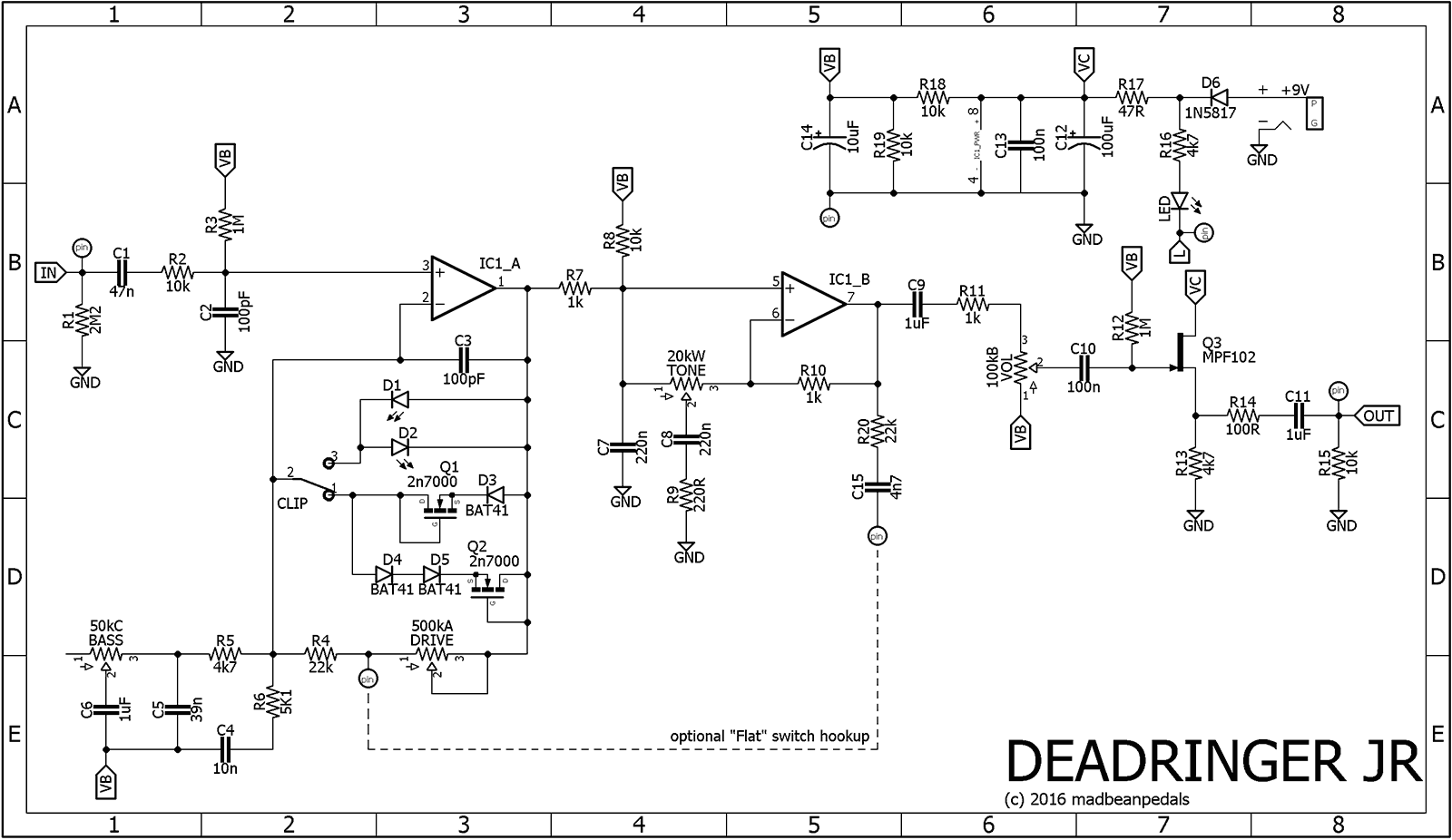

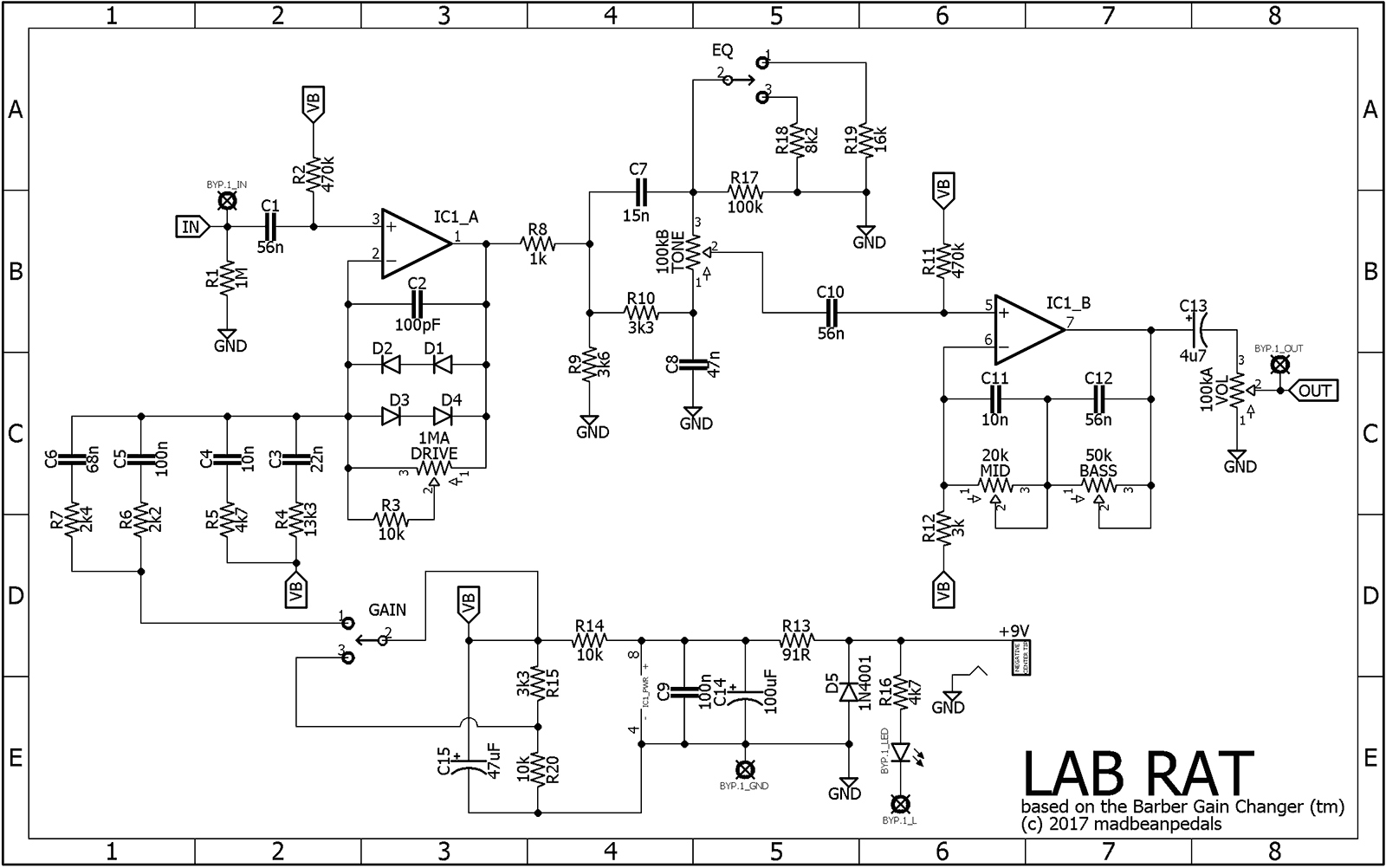

Darkside | Cornish G2 (TM) | July 2016 | 125B | |||
Deadringer JR. | Fulltone Full-Drive-ish | Feb. 2016 | 1590B | |||
EgoDriver | Fulltone OCD (TM) | Nov. 2016 | 1590B | |||
Lab Rat | Barber Gain Changer(TM) | May 2017 | 1590B | |||

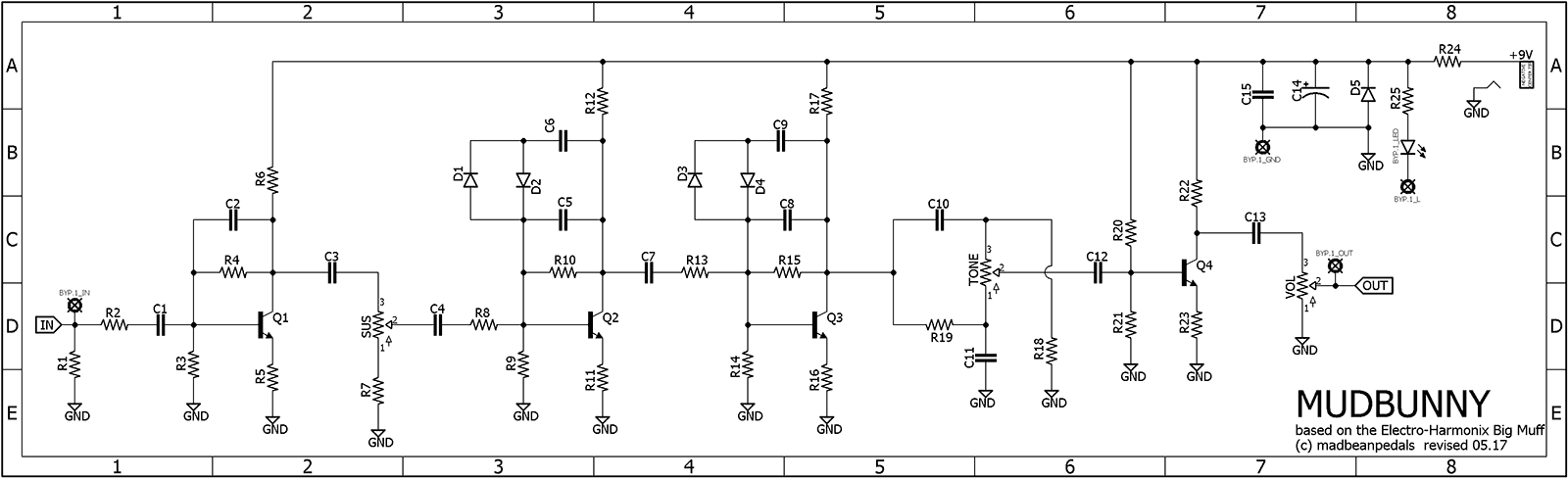

Mudbunny | EHX Big Muff (TM) | May 2017 | 1590B | |||

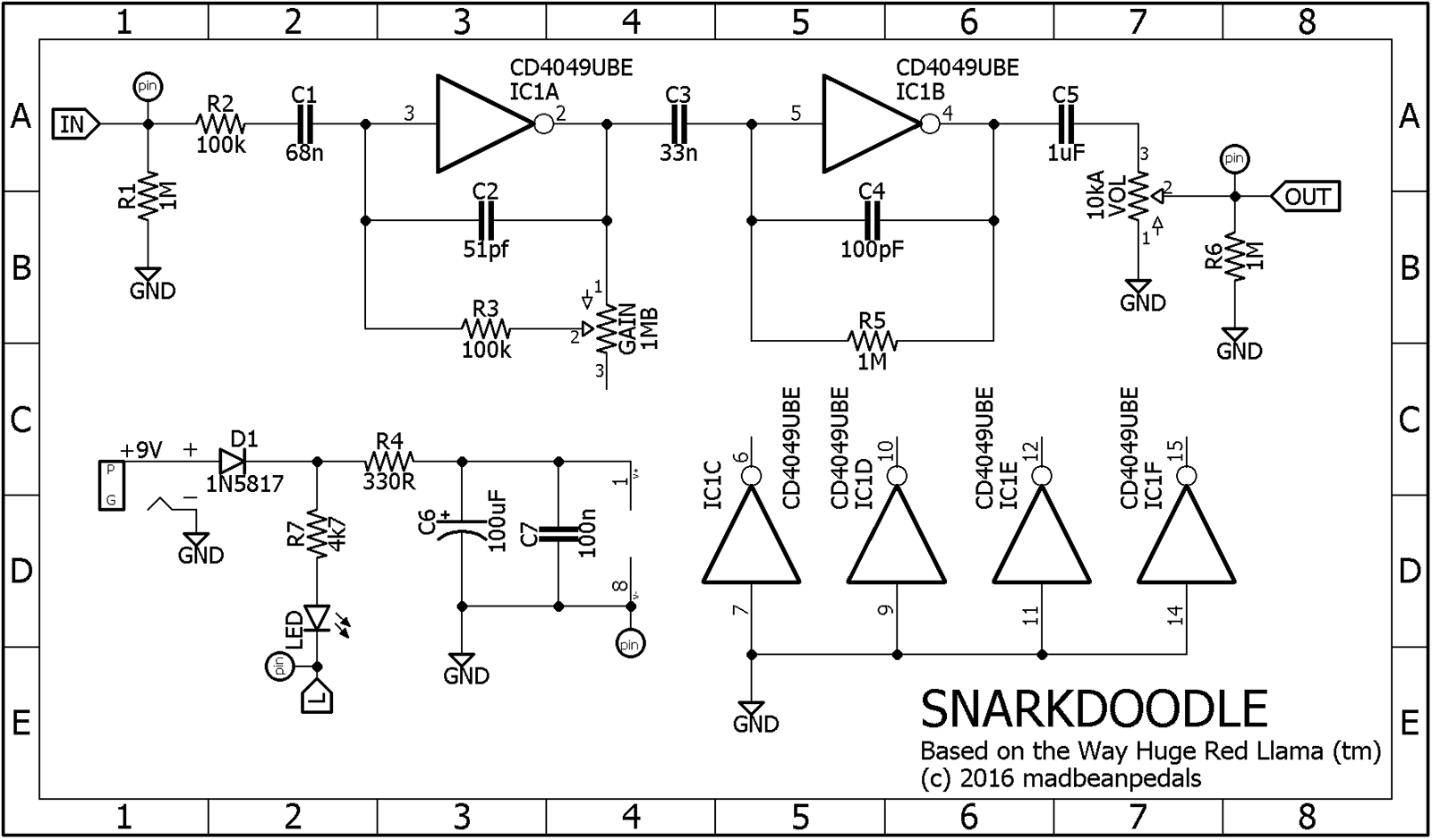

Snarkdoodle | Way Huge Red Llama (TM) | Mar. 2016 | 1590B | |||

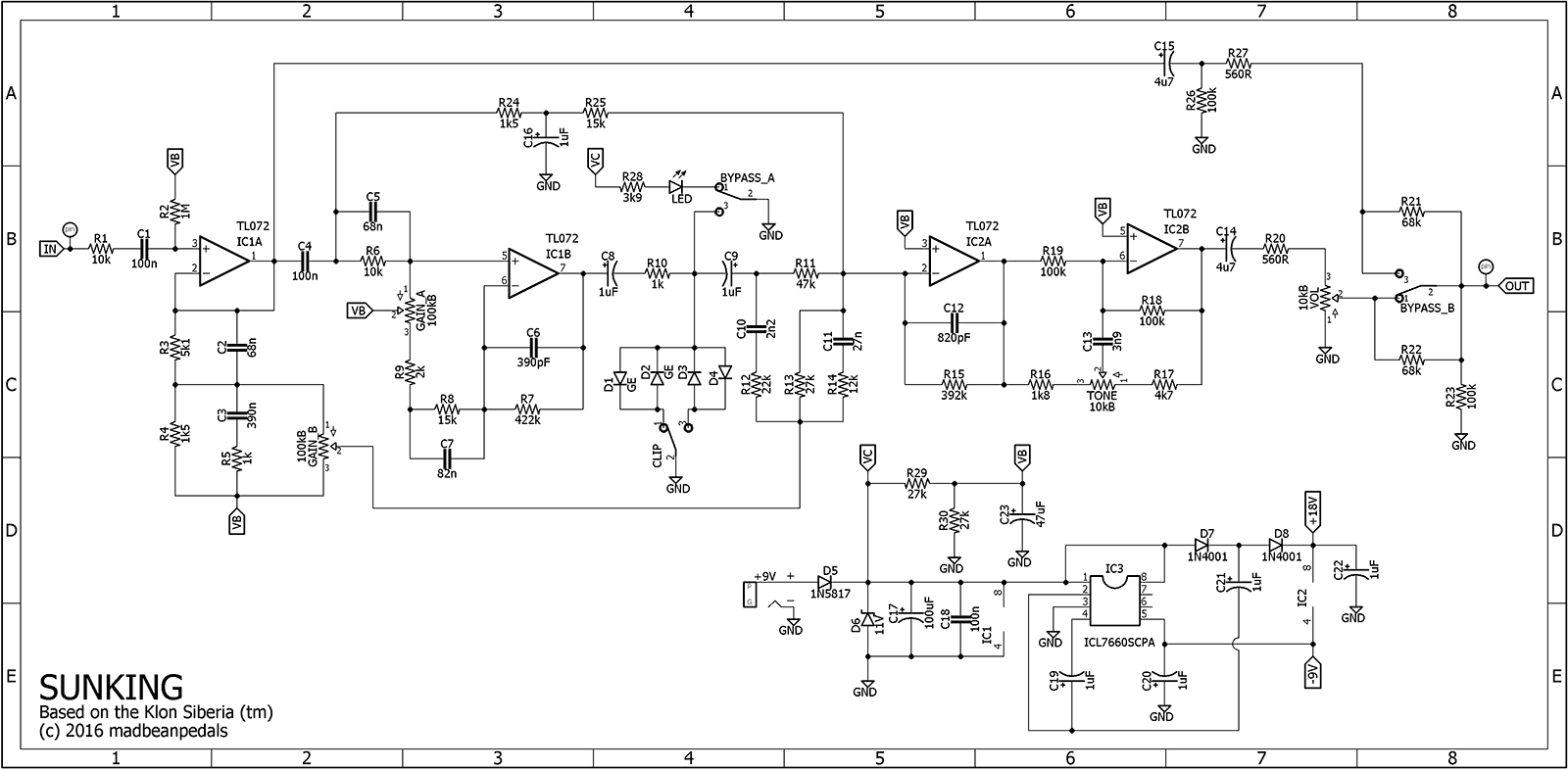

Sunking | Klon SIberia (TM) | Feb. 2016 | 1590BB | |||

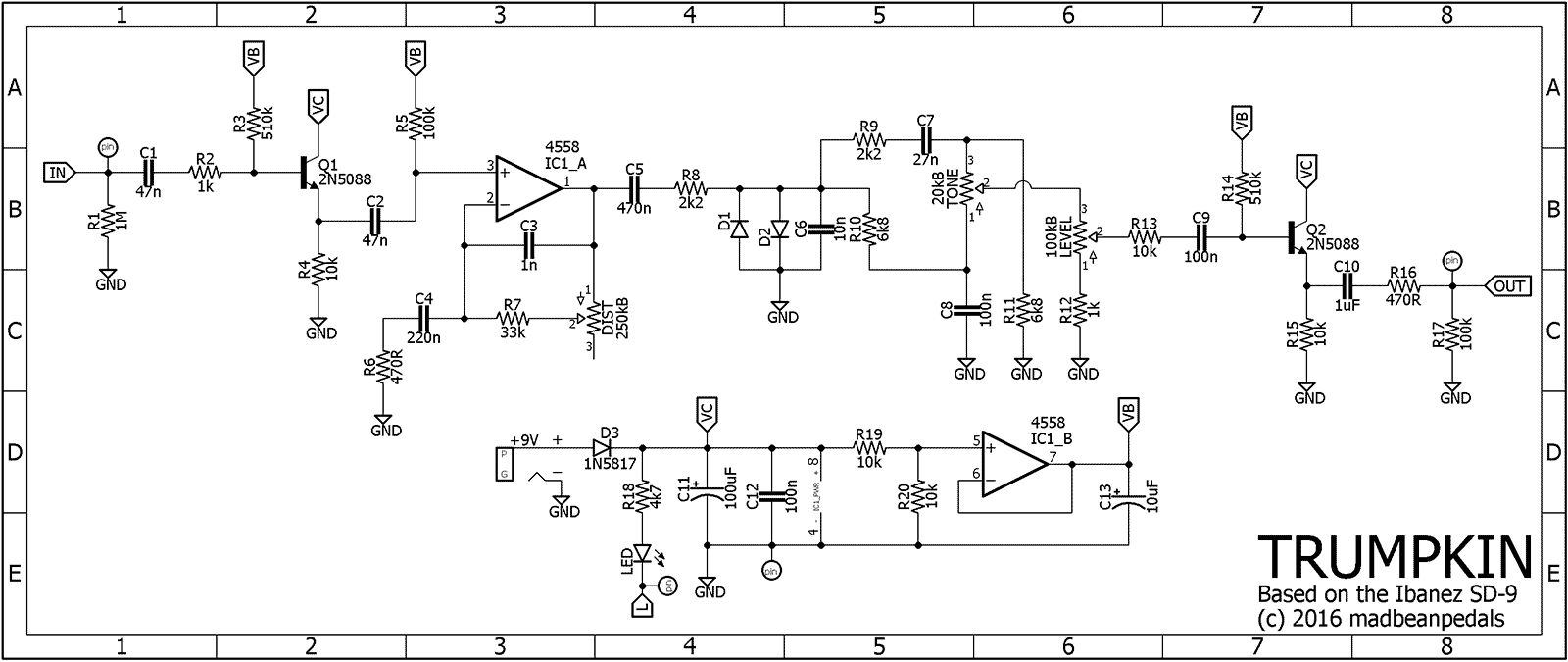

Trumpkin | Ibanez SD-9 (TM) | Nov. 2016 | 1590B | |||

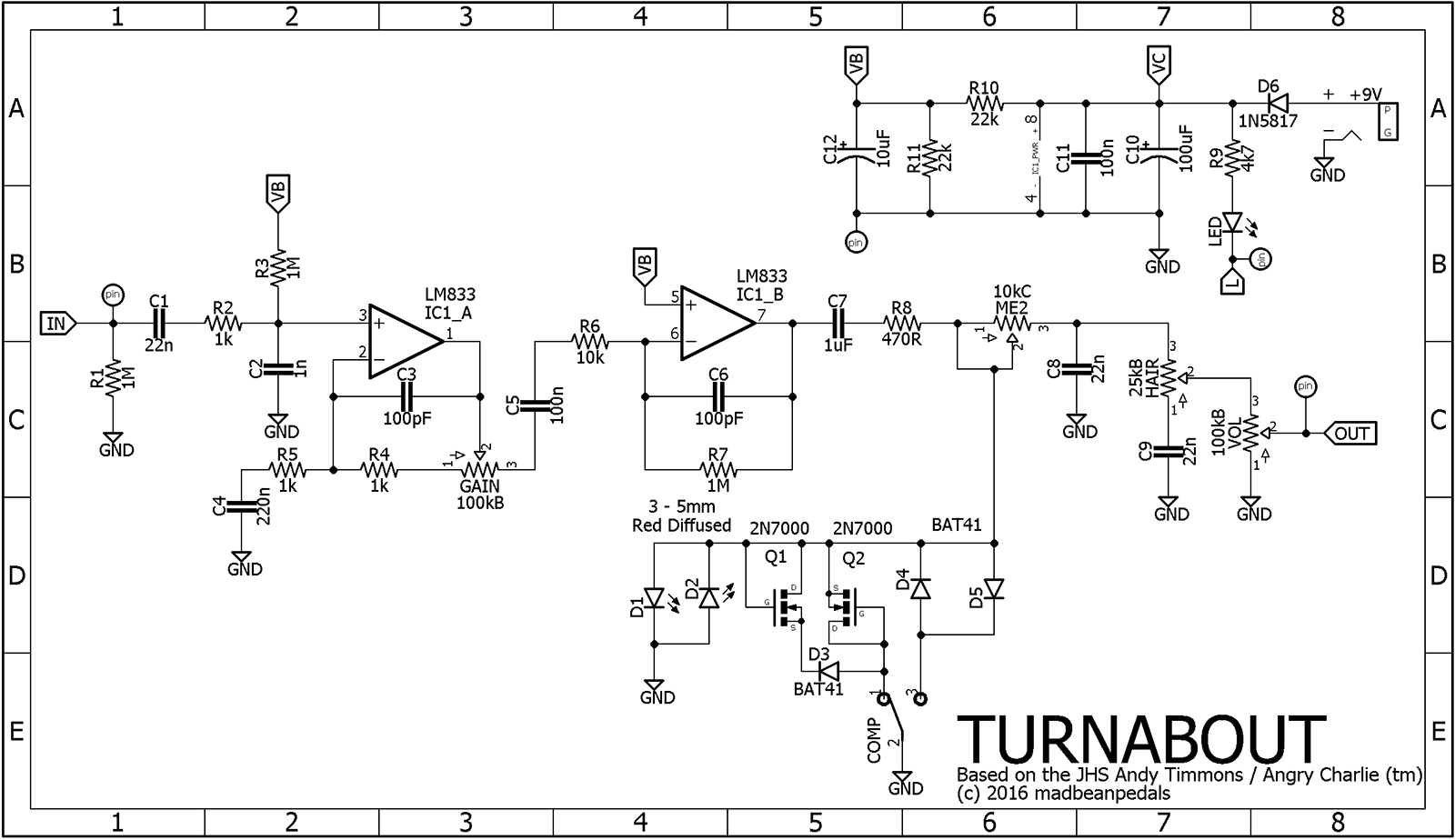

Turnabout | JHS @ (TM) | Mar. 2016 | 1590B | |||
