Twin Peaks

[flanagan0718]

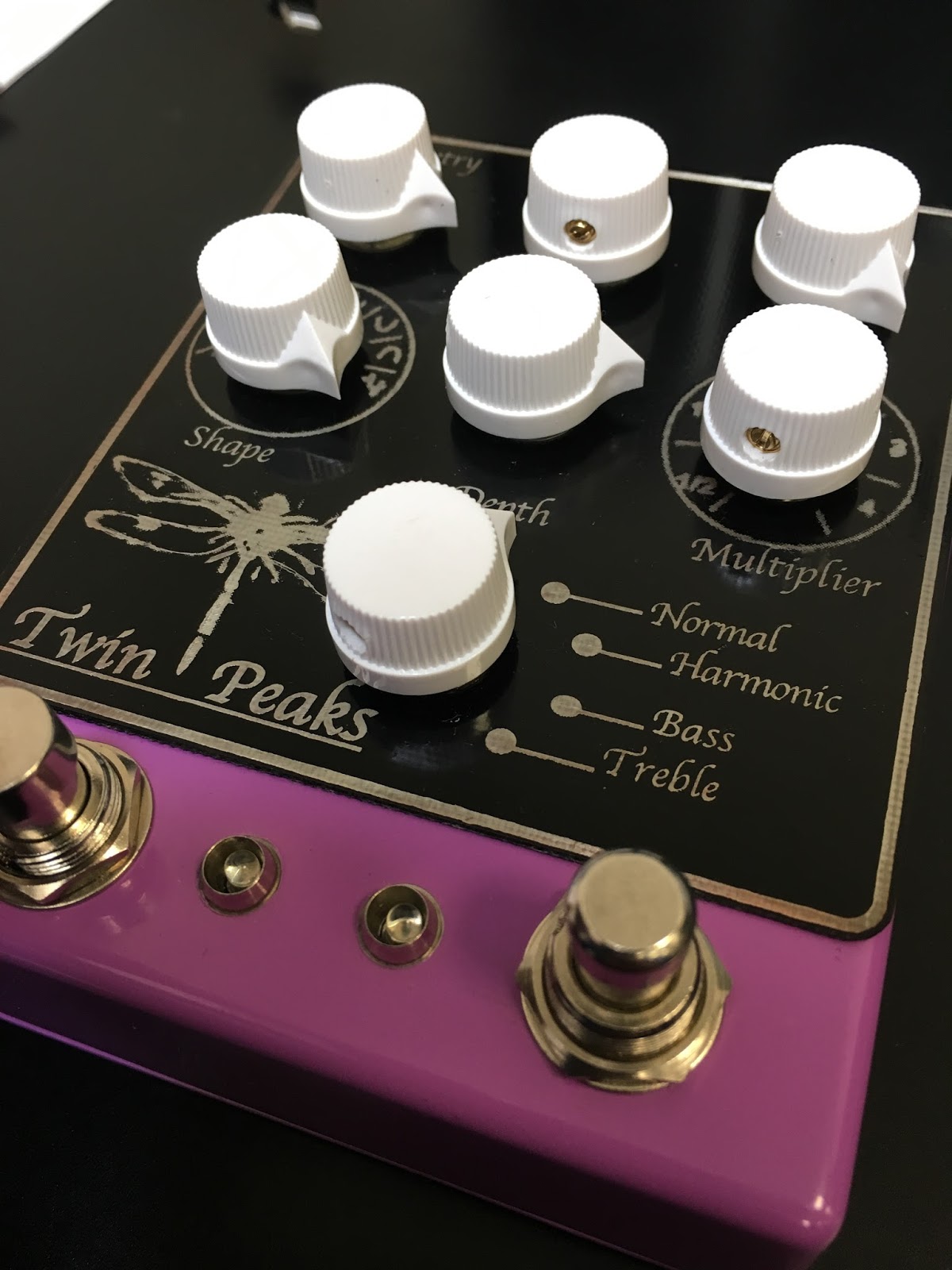

Got a message from someone wanting one of these and because I'm a PCB / Parts hoarder I had it all. Including a Purple enclosure that Jon (midwayfair) gave me forever ago. I did ste...borrow the face plate idea I saw here last week. But here is my build.







Hope you guys like it. I didn't have time to do a demo but this thing is awesome. I might need to order another from David at some point. Just a quick note I used the NSL7053 Optos and this is the older sandwich board from the first GB he did. Thanks for looking!

-Mike-

[Martan]

Looks awesome, Mike! Gotta finish mine sometime, too. Been stalling out about programming the tap tempo chips:)

[flanagan0718]

Looks awesome, Mike! Gotta finish mine sometime, too. Been stalling out about programming the tap tempo chips:)

Thanks for the kind words. I can burn a couple for you if you need. LMK

[gül]

Awesome, Mike! I love the tinned faceplate. How funny, I just PM'd you about the Twin Peaks I just finished on vero. This was one of those rare occasions where I thought the vero was much easier to build than the PCBs. I used this layout:

http://tagboardeffects.blogspot.com/2015/10/twin-peaks-tap-tempo-tremolo.html

Thanks for those switches and the TAPLFO chips! Isn't this trem great?

[storyboardist]

Nice work, Mike! Really dig the faceplate. What material did you use?

[flanagan0718]

Nice work, Mike! Really dig the faceplate. What material did you use?

Thanks man. I used the 030 (thickness) / .5 oz (copper weight) of the black FR4 from ABCFAB. Then, simple toner transfer, etched, and then liquid tin. I sprayed it with an acrylic clear coat after to give it a little "shine"

Copper clad link
http://www.ebay.com/itm/10-pcs-FR-4-030-BLACK-4-x-6-2-oz-Single-sided-Copper-Laminate-Board-PCB-/311655091971?hash=item4890174f03:m:mNxrxiSFMSZ0W9vvqFfp5ZQ

This is 2oz so it would take forever to etch but it's that same thickness and seller.

[storyboardist]

liquid tin

Ah, that's what threw me. Nice work.
