Hey guys,

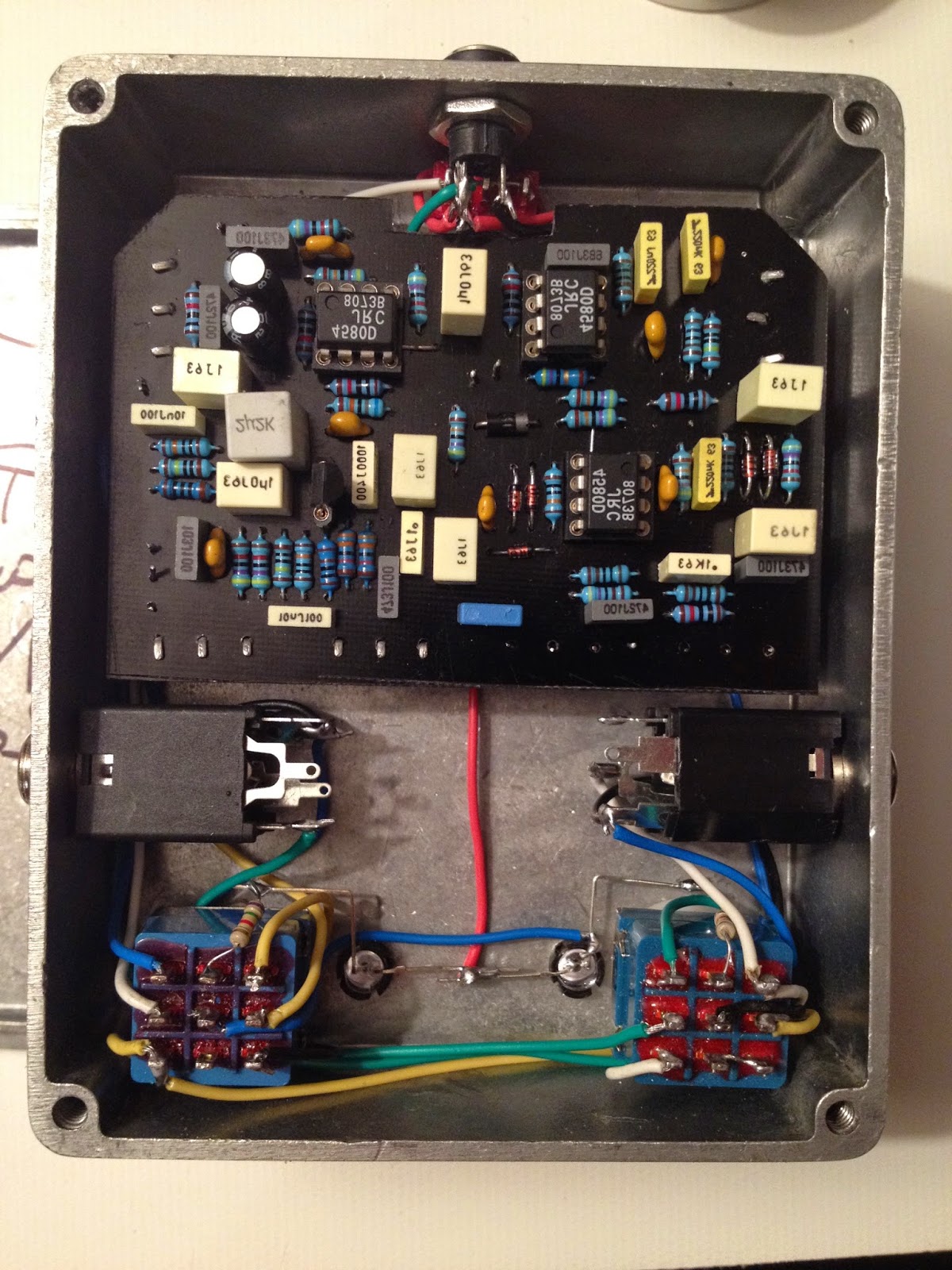

    Finished this up over the weekend. It's an Upper Decker build I did for a friend. He was looking for something with a lot of gain so...this is what he got. The build is very fun. The bard is Etched buy me and was a great project. After the Upraor I did I decided to slow down and take my time with the wiring on this one. I had the board populated for a while (before I moved 4 months ago) it just kept getting pushed off because it is a "freebie". As you can see from the pictures the decal came out a little wanky. I think that this might be because i used cool water instead of warm. This, I think, allowed the clear coat to get under the decal and make it all wavy. This was my fourth attempt. I decided to leave it this way because, well, it cost me 4 sheets of decal paper. Any ways...here is what you really want.

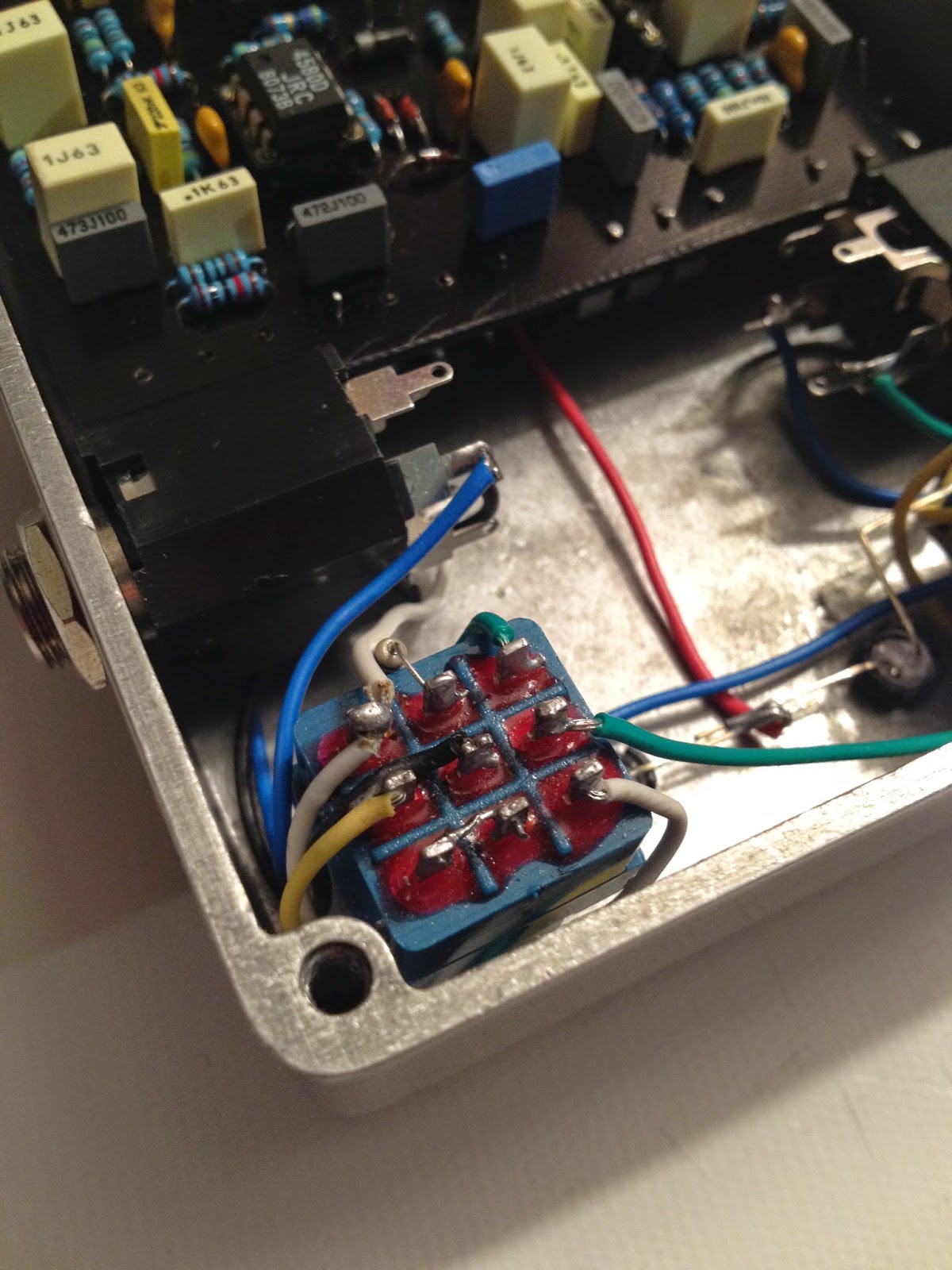

I used this as an attention to detail build. The switch wiring is very much all over the place. I figured it was a good one to take my time and pay attention to what I was doing. Any ways thanks for reading. I'll post a video soon.

-Mike-
