Zero Point Double Delay

[lars]

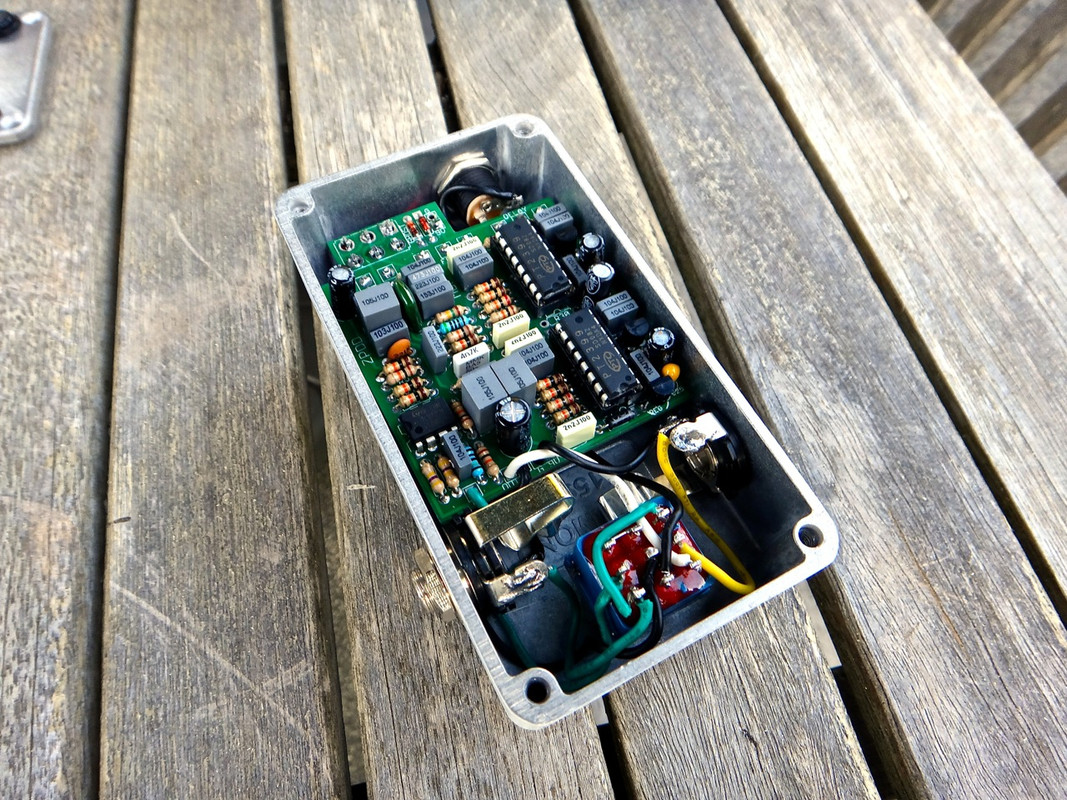

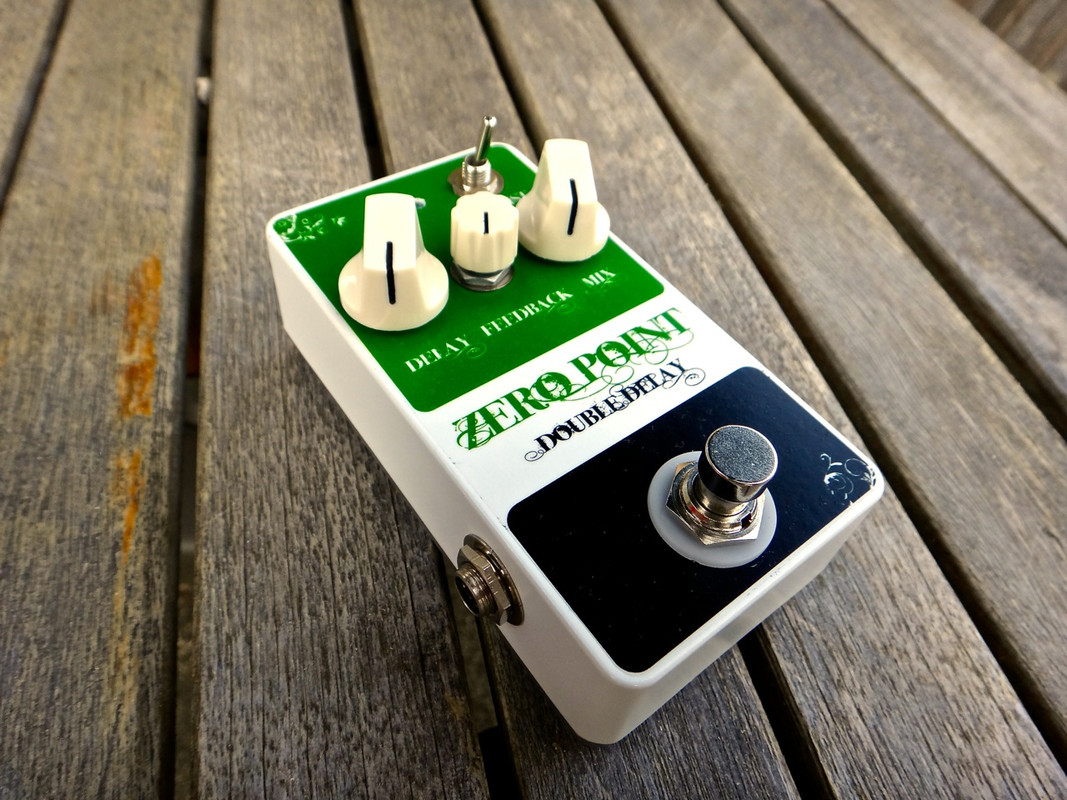

This is one of those PCBs that sat around for a while, and I finally got the time to build it. This is a great "analog" delay. The slapback echo it can do is spot on for vintage tape sound. I did a couple mods to the circuit as per Juansolo's and Madbean's suggestions. Juansolo mentioned that a 50k log taper pot works better for the feedback control, and it does. I also swapped out R3 from 1M to 470k to eliminate the volume boost as per Madbean's suggestion. I went with a semi-gloss finish on this pedal, and I really like the way it turned out. I think I'm going to start using semi-gloss from now on, it's easier to work with. I would recommend this build to anybody that wants a great, simple analog-sound delay (if anybody here hasn't built one of these already).

[Leevibe]

Love it! Cool choice on the knobs.

[blearyeyes]

Super clean and nice graphics.

Did you finish the entire enclosure or are you talking about using semi-gloss clear coat?

[lars]

I used semi-gloss white paint, and then finished the whole enclosure in semi-gloss clear over the graphics. I like it because the finish is much thinner, and dries faster. The clear coat dries in 8 minutes!

[slimtriggers]

That looks great!  How did you cut that center knob down?

[alanp]

Oooh, very nice. I think this is the first report I've seen outside of Juan's Space Ritual.

Is the center knob one from Smallbear?

[wgc]

Great build!  Dualie on my to do list

[lincolnic]

Love the finish!

[lars]

I cut down the center knob with a dremel tool, it was just too tall for my taste as per stock. It's one of the standard 1900H's from Tayda. If you bend out the splines on a typical knurled-shaft pot, they'll press right on after the mod.
