Proper Gahnda Fuzz

[timbo_93631]

"Proper Gahnda Fuzz"

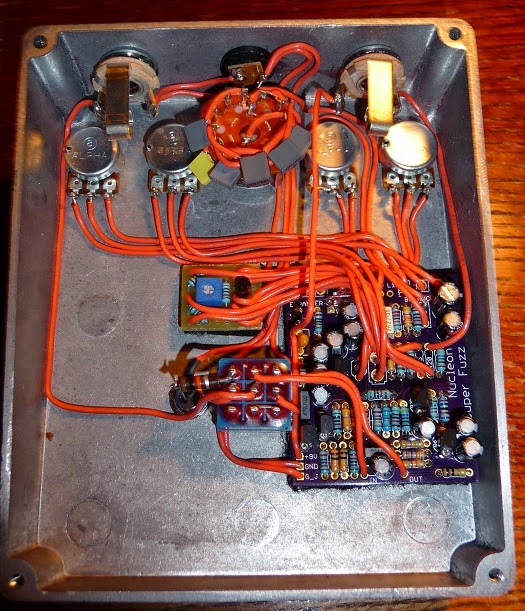

A modded Superfuzz on Rutger's board, it has the tone switch replaced with a pot to pan between the two normal Superfuzz voices, and an octave null control, the mods developed by Wattson for the EYF-6.  It also has a rotary switch that selects between 4 progressively midrange and upper midrange centered caps, the stock Superfuzz value, and one fatter cap on the mid scoop filter portion of the tone control.  The acid-etched graphics feature a compilation of characters from Mehran Heard's Proper Gahnda comic strip, he's a pal and I'm a fan.  See some of his wonderful art at eatcho.com

It's in a wedge-cut BLMS 1790 enclosure, big fuzz, big box.
