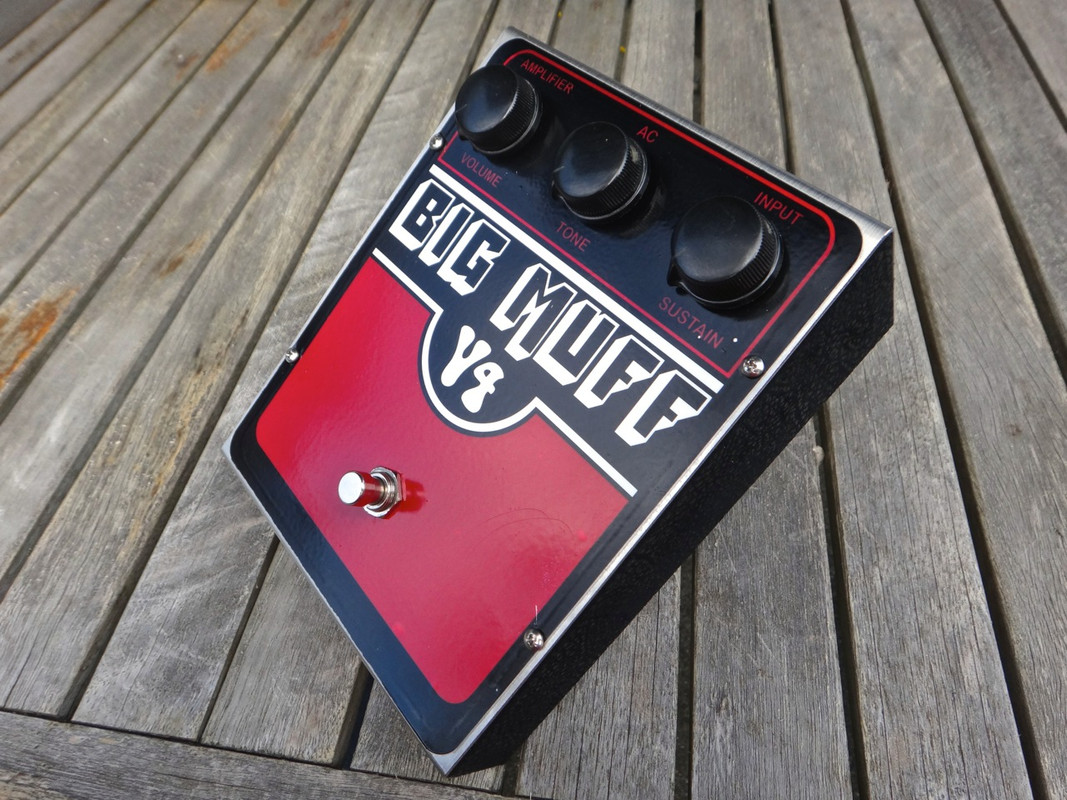

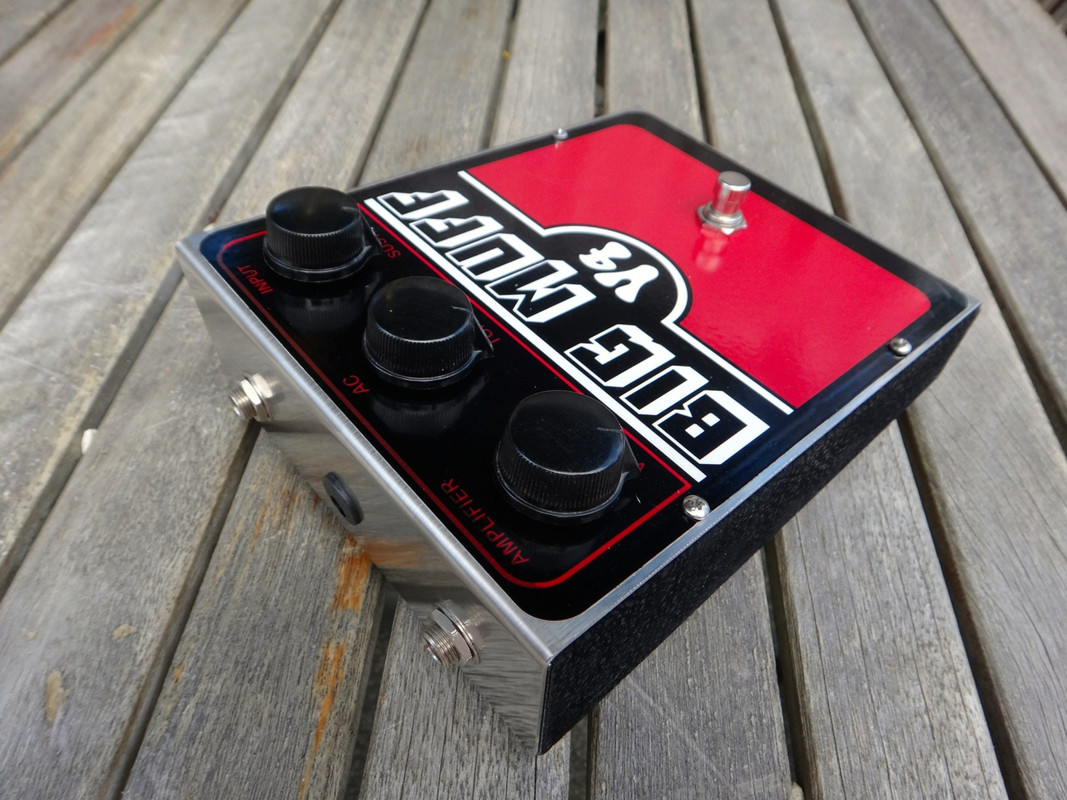

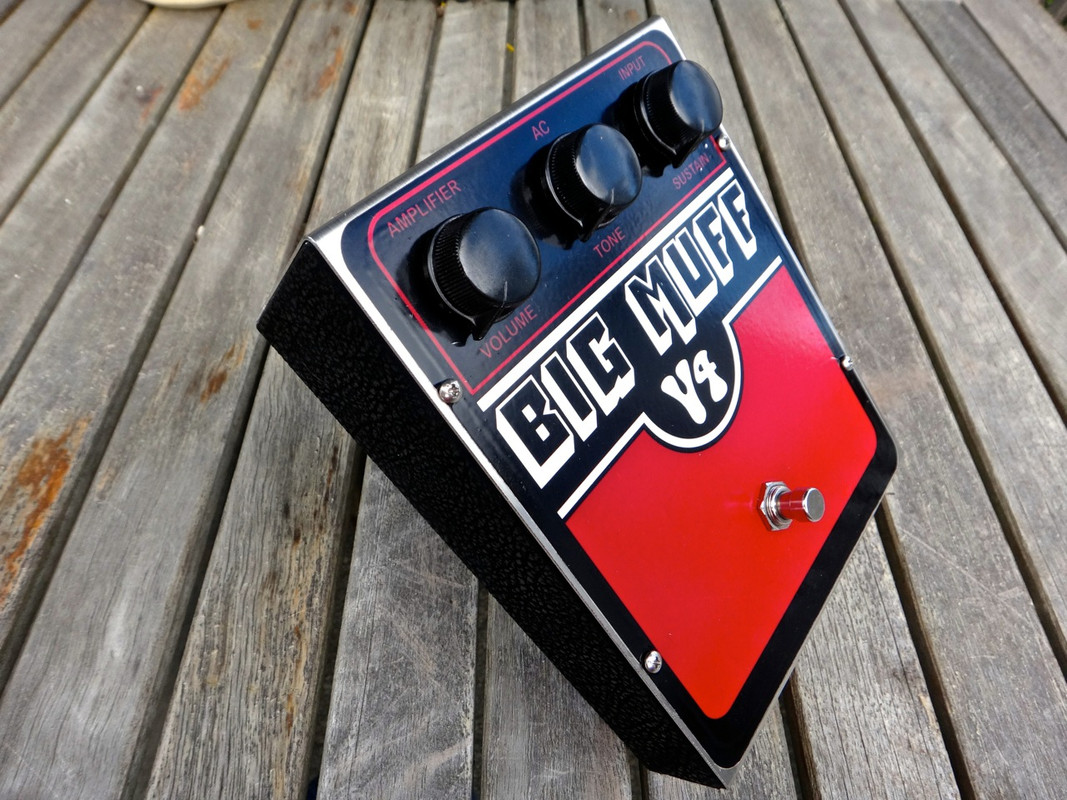

Finally got around to doing something with that awesome Big Muff enclosure made by DavidGiandiletti. These enclosures really are top notch, and I'm sure they would make someone do a double-take before dismissing it as a clone. The great thing about building pedals is that you can make versions that never existed. My favorite Big Muff version is the op-amp version 4, but I liked the reverse graphics EHX used during the early 80's. So here is a combination of the two:





jubal81

#1
June 19, 2014, 12:01:11 AM
That is outstanding! Really has a NOS look.
"If you put all the knobs on your amplifier on 10 you can get a much higher reaction-to-effort ratio with an electric guitar than you can with an acoustic."
- David Fair

Scruffie

#2
June 19, 2014, 12:05:36 AM
Not often a build actually makes me jealous I don't own it :D
Works at Lectric-FX

peAk

#3
June 19, 2014, 12:51:29 AM
awesome man

Can you tell me where you got the knobs?

I did something similar with the electric mistress and the Davies 1400 seem small on mine

Haberdasher

#4
June 19, 2014, 02:00:37 AM
man that looks awesome
i'm jonesing for one of those enclosures
Looking for a discontinued madbean board?  Check out my THREAD

FABBED PCB's FOR SALE:
Now carrying Matched JFETS

lincolnic

#5
June 19, 2014, 04:38:13 AM
Did you design that layout? I love the wavy traces.

alanp

#6
June 19, 2014, 04:53:59 AM
Quote from: lincolnic on June 19, 2014, 04:38:13 AM
Did you design that layout? I love the wavy traces.

+1, using the old brown board material would have had me saying, "Build report? It looks like he gave an IC Muff a damn good cleaning to me..."

Very, very impressive work!
"A man is not dead while his name is still spoken."
- Terry Pratchett
My OSHpark shared projects
My website

lars

#7
June 19, 2014, 05:17:25 AM

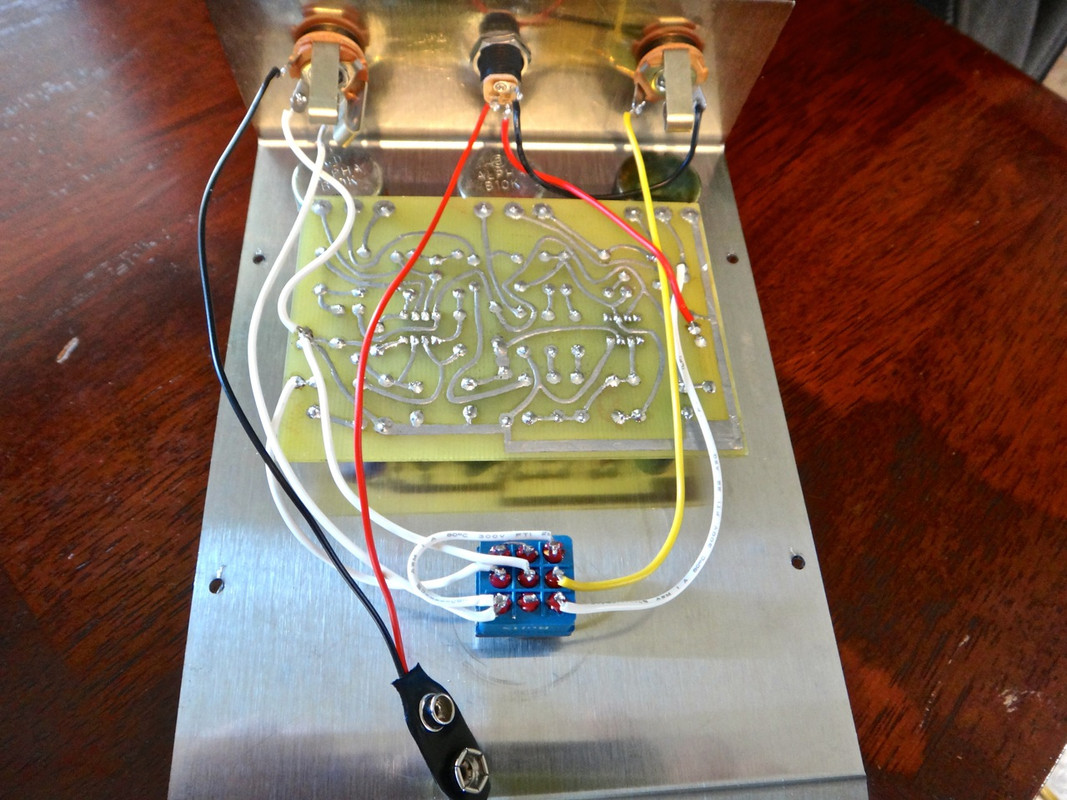

To answer about the knobs, the volume pot and knob are actually from a circa 2002 NYC Big Muff, the other two knobs I purchased from small bear here:  http://www.smallbearelec.com/servlet/Detail?no=150. I just scratched off the white indicator lines to give them a vintage look. The circuit trace is an exact trace of a V4 op-amp muff that I found on DIY stompboxes. I think the trace is also on Aron Nelson's site. There was an error on the ground connection for the 4558, which may be why that trace didn't take off. With a slight mod though, it works perfect.
Now if only I could find a white foam 9v battery holder to finish the look....

pickdropper

#8
June 19, 2014, 12:28:08 PM
Very classy build.  It sure does have the vibe of the real thing.

Function f(x)
Follow me on Instagram as pickdropper

GrindCustoms

#10
August 15, 2014, 03:12:50 AM
Wow! Being in a EHX madness lately.... you get me by the feelings.

Beautiful work! 8)
Killing Unicorns, day after day...

Building a better world brick by brick:https://rebrickable.com/users/GrindingBricks/mocs/

jimilee

#11
August 15, 2014, 03:19:50 AM
Wow! That's awesome.
Pedal building is like the opposite of sex.  All the fun stuff happens before you get in the box.

culturejam

#12
August 15, 2014, 03:49:07 AM
Fuck, man.  8)
Partner and Product Developer at Function f(x).
My Personal Site with Effects Projects

Hexjibber

#13
August 15, 2014, 09:02:56 AM
That looks awesome man, love it!

selfdestroyer

#14
August 16, 2014, 06:30:48 AM
Pure Money!.. looks so awesome. There is just something about the big box EHX pedals that make me smile. You nailed it.
