MadBean Pork Barrel Chorus - 2015

[luks999]

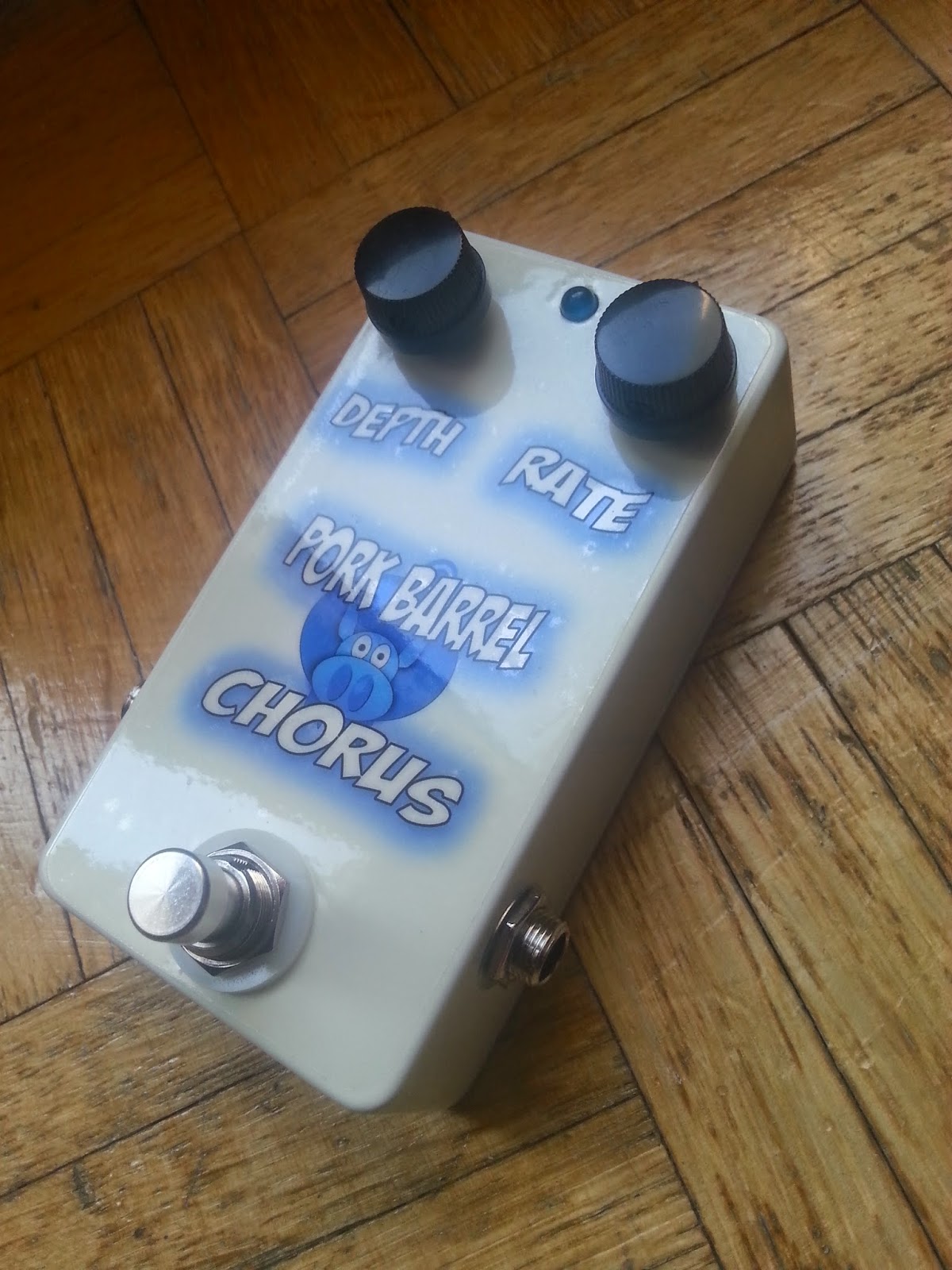

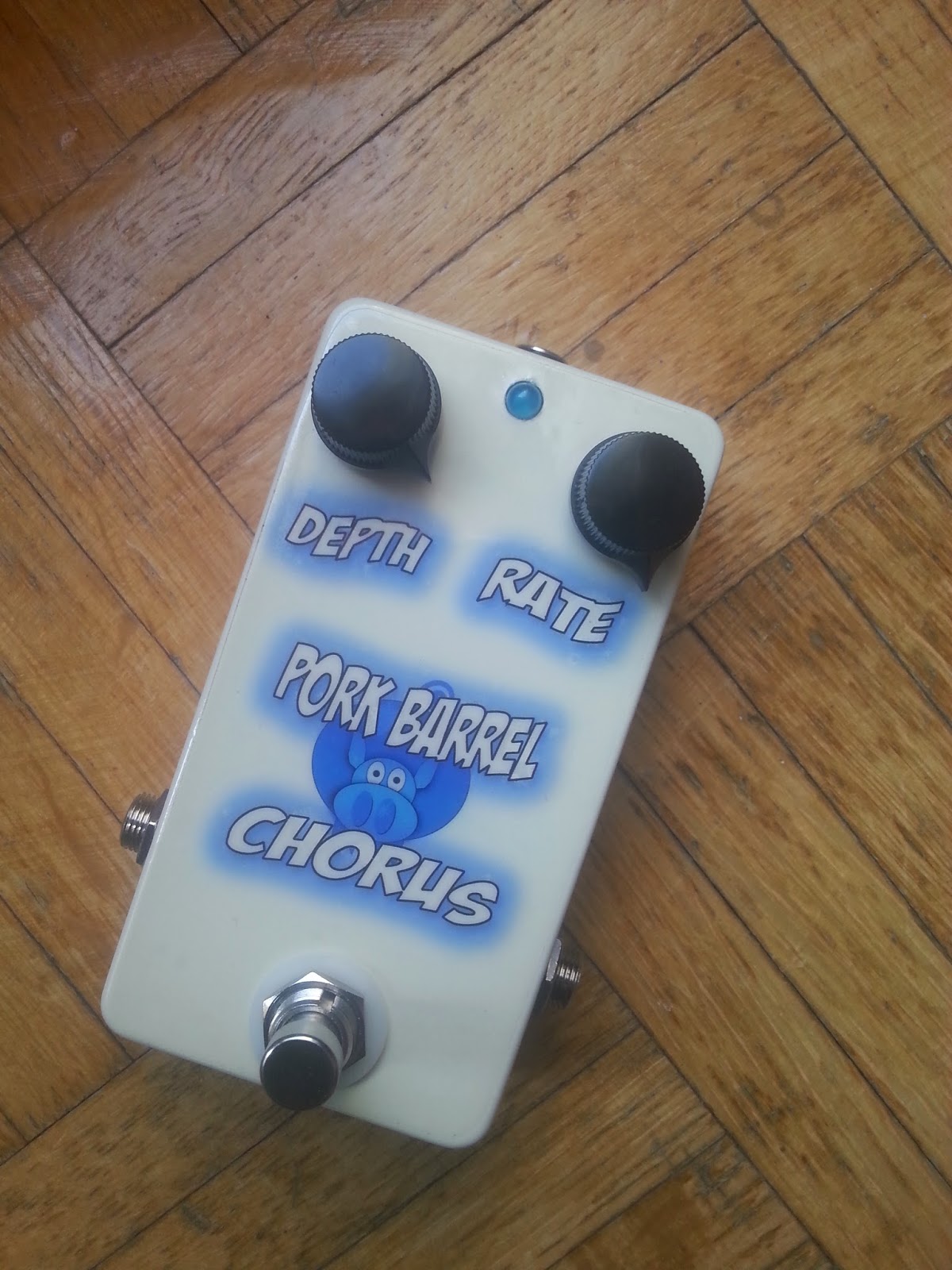

heres my version of the pork barrel.
very tight fit in a 1590b, was quite a challenge to stuff it there.
connected the wires wrong on the input jack and wondered why i didnt even get bypass sound. haha didnt thought i still can make such a mistake
the pedal now works fine and sounds great

3pdt switching board is from uk-electronic, really small, like it.

[bcalla]

Man, that is tight!  The power jack looks like it was fun.  Nice finish, too.

[luks999]

Man, that is tight!  The power jack looks like it was fun.  Nice finish, too.

thanks
yeah that power jack looks worse than it actually is. its more space between pcb and jack than it looks like here.
the big wire made it challenging as well, but i have to use them, they are undestroyable

used one LED here for bypass and rate. worked very well. this blue LED is very, very very bright though... i should change it :/

[m-Kresol]

Nice one. And yes, blue LEDs tend to be way brighter than red, green or yellow. Just change the CLR to 10k or so

[luks999]

thanks felix
i used the rate LED clr from the BOM (1k), but unfortunately i used a very bright blue LED, so this is even more bright than usual blue ones...
hmm maybe i use it for a disco effect in my room

[nzCdog]

wow man, i totally love it!  especially the graphics!  nice job!

[luks999]

thanks  appreciate it a lot :-)
